KNX CABLES - COMMUNICATION, CONTROL, AIR CON - PE, LSZH - 0.8MM
OVERVIEW
KNX Cable is designed for communication in building management systems and can also be used to control lighting, air conditioning, blinds, heating, audio, and white goods for the future proof control of buildings.
STANDARDS
- IEC60332-1
- ISO/IEC 14543-3
- EN-13602-2002
- CENELEC EN 50090
- CEN EN 13321-1

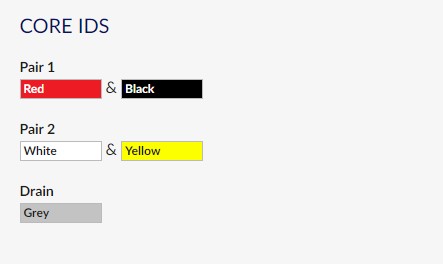

CONSTRUCTION
Conductor: Solid Copper laid in pairs or Quad
Fillers: Cotton Rope
Overall Tape: Clear Polyester
Drain Wire: Tinned Copper
Overall Screen: Aluminium/Polyester Foil
Sheath: Low Smoke Zero Halogen (LSZH)
Sheath Colour: Green
CHARACTERISTICS
Voltage Rating: 300V
Temperature Rating Fixed: -20°C to +70°C
Minimum Bending Radius: As per cable manufacturer datasheet
Should not be installed at temperatures below 0°C
