Tri-Rated Cable - BS6231, UL, CSA, PVC - 0.5mm to 400mm
OVERVIEW
Overview
The British standard Tri-Rated cable is sometimes referred to as panel wiring cable due to its application and purpose. It is a high temperature, flame retardant cable designed for use in instrumentation panels, motor starters or power switchgear. The cable features flexible plain annealed copper conductors and a circular high temperature PVC outer sheath. UL & CSA approved also to BS6231. Bi-Rated cables UL and CSA Approval.
The British standard Tri-Rated cable is sometimes referred to as panel wiring cable due to its application and purpose. It is a high temperature, flame retardant cable designed for use in instrumentation panels, motor starters or power switchgear. The cable features flexible plain annealed copper conductors and a circular high temperature PVC outer sheath. UL & CSA approved also to BS6231. Bi-Rated cables UL and CSA Approval.
STANDARDS
- Flame propagation to BS EN 50265, IEC 60332-1
- BS6231
- UL 1015
- BS EN 50525-2-31
CONSTRUCTION
Conductor: Flexible plain annealed copper conductors

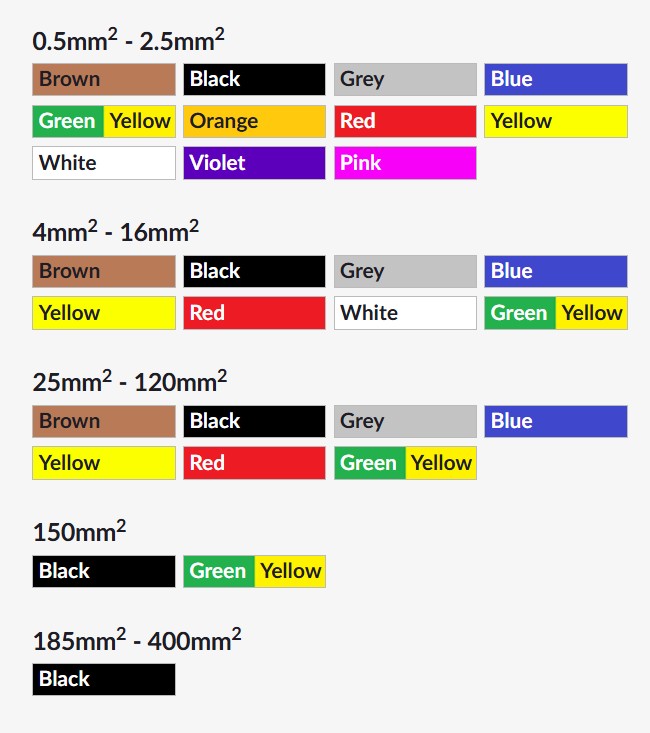

Sheath: Circular high temperature PVC outer sheath in a large range of colours
CHARACTERISTICS
Voltage Rating: 600/1000 volts
Temperature Limits: -30°C to +105°C
Minimum Bending Radius: As per cable manufacturer datasheet
PRODUCTS
| Code | Description |
| TRI0/5 | 1X0.5 BS6231,UL,CSA TRI-RATED BROWN 1KV 100M REEL |
| TRI0/5 | 1X0.5 BS6231,UL,CSA TRI-RATED 1KV BLUE 100M REEL |
| TRI0/5 | 1X0.5 BS6231,UL,CSA TRI-RATED 1KV GREEN/YELLOW 100M REEL |
| TRI0/5 | 1X0.5 BS6231,UL,CSA TRI-RATED 1KV BLACK 100M REEL |
| TRI0/5 | 1X0.5 BS6231,UL,CSA TRI-RATED 1KV GREY 100M REEL |
| TRI0/5 | 1X0.5 BS6231,UL,CSA TRI-RATED 1KV RED 100M REEL |
| TRI0/5 | 1X0.5 BS6231,UL,CSA TRI-RATED 1KV YELLOW 100M REEL |
| TRI0/5 | 1X0.5 BS6231,UL,CSA TRI-RATED 1KV WHITE 100M REEL |
| TRI0/5 | 1X0.5 BS6231,UL,CSA TRI-RATED 1KV VIOLET 100M REEL |
| TRI0/5 | 1X0.5 BS6231,UL,CSA TRI-RATED 1KV GREEN 100M REEL |
| TRI0/5 | 1X0.5 BS6231,UL,CSA TRI-RATED 1KV PINK 100M REEL |
| TRI0/5 | 1X0.5 BS6231,UL,CSA TRI-RATED 1KV ORANGE 100M REEL |
| TRI/75 | 1X.75 BS6231,UL,CSA TRI-RATED 1KV BROWN 100M REEL |
| TRI/75 | 1X.75 BS6231,UL,CSA TRI-RATED 1KV BLUE 100M REEL |
| TRI/75 | 1X.75 BS6231,UL,CSA TRI-RATED 1KV GREEN/YELLOW 100M REEL |
| TRI/75 | 1X.75 BS6231,UL,CSA TRI-RATED 1KV BLACK 100M REEL |
| TRI/75 | 1X.75 BS6231,UL,CSA TRI-RATED 1KV GREY 100M REEL |
| TRI/75 | 1X.75 BS6231,UL,CSA TRI-RATED 1KV RED 100M REEL |
| TRI/75 | 1X.75 BS6231,UL,CSA TRI-RATED 1KV YELLOW 100M REEL |
| TRI/75 | 1X.75 BS6231,UL,CSA TRI-RATED 1KV WHITE 100M REEL |
| TRI/75 | 1X.75 BS6231,UL,CSA TRI-RATED 1KV VOILET 100M REEL |
| TRI/75 | 1X.75 BS6231,UL,CSA TRI-RATED 1KV PINK 100M REEL |
| TRI/75 | 1X.75 BS6231,UL,CSA TRI-RATED 1KV ORANGE 100M REEL |
| TRI/75 | 1X.75 BS6231,UL,CSA TRI-RATED 1KV GREEN 100M REEL |
| TRI/75 | 1X.75 BS6231,UL,CSA TRI-RATED 1KV LIGHT BLUE 100M REEL |
| TRI1 | 1X1 BS6231,UL,CSA TRI-RATED 1KV BROWN 100M REEL |
| TRI1 | 1X1 BS6231,UL,CSA TRI-RATED 1KV BLUE 100M REEL |
| TRI1 | 1X1 BS6231,UL,CSA TRI-RATED 1KV GREEN/YELLOW 100M REEL |
| TRI1 | 1X1 BS6231,UL,CSA TRI-RATED 1KV BLACK 100M REEL |
| TRI1 | 1X1 BS6231,UL,CSA TRI-RATED 1KV GREY 100M REEL |
| TRI1 | 1X1 BS6231,UL,CSA TRI-RATED 1KV RED 100M REEL |
| TRI1 | 1X1 BS6231,UL,CSA TRI-RATED 1KV YELLOW 100M REEL |
| TRI1 | 1X1 BS6231,UL,CSA TRI-RATED 1KV WHITE 100M REEL |
| TRI1 | 1X1 BS6231,UL,CSA TRI-RATED 1KV VIOLET 100M REEL |
| TRI1 | 1X1 BS6231,UL,CSA TRI-RATED 1KV GREEN 100M REEL |
| TRI1 | 1X1 BS6231,UL,CSA TRI-RATED 1KV PINK 100M REEL |
| TRI1 | 1X1 BS6231,UL,CSA TRI-RATED 1KV ORANGE 100M REEL |
| TRI1 | 1X1 BS6231,UL,CSA TRI-RATED 1KV LIGHT BLUE 100M REEL |
| TRI1/5 | 1X1.5 BS6231,UL,CSA TRI-RATED 1KV BROWN 100M REEL |
| TRI1/5 | 1X1.5 BS6231,UL,CSA TRI-RATED 1KV BLUE 100M REEL |
| TRI1/5 | 1X1.5 BS6231,UL,CSA TRI-RATED 1KV GREEN/YELLOW 100M REEL |
| TRI1/5 | 1X1.5 BS6231,UL,CSA TRI-RATED 1KV BLACK 100M REEL |
| TRI1/5 | 1X1.5 BS6231,UL,CSA TRI-RATED 1KV GREY 100M REEL |
| TRI1/5 | 1X1.5 BS6231,UL,CSA TRI-RATED 1KV RED 100M REEL |
| TRI1/5 | 1X1.5 BS6231,UL,CSA TRI-RATED 1KV YELLOW 100M REEL |
| TRI1/5 | 1X1.5 BS6231,UL,CSA TRI-RATED 1KV WHITE 100M REEL |
| TRI1/5 | 1X1.5 BS6231,UL,CSA TRI-RATED 1KV VIOLET 100M REEL |
| TRI1/5 | 1X1.5 BS6231,UL,CSA TRI-RATED 1KV GREEN 100M REEL |
| TRI1/5 | 1X1.5 BS6231,UL,CSA TRI-RATED 1KV PINK 100M REEL |
| TRI1/5 | 1X1.5 BS6231,UL,CSA TRI-RATED 1KV ORANGE 100M REEL |
| TRI1/5 | 1X1.5 BS6231,UL,CSA TRI-RATED 1KV LIGHT BLUE 100M REEL |
| TRI2/5 | 1X2.5 BS6231,UL,CSA TRI-RATED 1KV BROWN 100M REEL |
| TRI2/5 | 1X2.5 BS6231,UL,CSA TRI-RATED 1KV BLUE 100M REEL |
| TRI2/5 | 1X2.5 BS6231,UL,CSA TRI-RATED 1KV GREEN/YELLOW 100M REEL |
| TRI2/5 | 1X2.5 BS6231,UL,CSA TRI-RATED 1KV BLACK 100M REEL |
| TRI2/5 | 1X2.5 BS6231,UL,CSA TRI-RATED 1KV GREY 100M REEL |
| TRI2/5 | 1X2.5 BS6231,UL,CSA TRI-RATED 1KV RED 100M REEL |
| TRI2/5 | 1X2.5 BS6231,UL,CSA TRI-RATED 1KV YELLOW 100M REEL |
| TRI2/5 | 1X2.5 BS6231,UL,CSA TRI-RATED 1KV WHITE 100M REEL |
| TRI2/5 | 1X2.5 BS6231,UL,CSA TRI-RATED 1KV VIOLET 100M REEL |
| TRI2/5 | 1X2.5 BS6231,UL,CSA TRI-RATED 1KV GREEN 100M REEL |
| TRI2/5 | 1X2.5 BS6231,UL,CSA TRI-RATED 1KV PINK 100M REEL |
| TRI2/5 | 1X2.5 BS6231,UL,CSA TRI-RATED 1KV ORANGE 100M REEL |
| TRI2/5 | 1X2.5 BS6231,UL,CSA TRI-RATED 1KV LIGHT BLUE 100M REEL |
| TRI4 | 1X4 BS6231,UL,CSA TRI-RATED 1KV BROWN 100M REEL |
| TRI4 | 1X4 BS6231,UL,CSA TRI-RATED 1KV BLUE 100M REEL |
| TRI4 | 1X4 BS6231,UL,CSA TRI-RATED 1KV GREEN/YELLOW 100M REEL |
| TRI4 | 1X4 BS6231,UL,CSA TRI-RATED 1KV BLACK 100M REEL |
| TRI4 | 1X4 BS6231,UL,CSA TRI-RATED 1KV GREY 100M REEL |
| TRI4 | 1X4 BS6231,UL,CSA TRI-RATED 1KV RED 100M REEL |
| TRI4 | 1X4 BS6231,UL,CSA TRI-RATED 1KV YELLOW 100M REEL |
| TRI4 | 1X4 BS6231,UL,CSA TRI-RATED 1KV WHITE 100M REEL |
| TRI4 | 1X4 BS6231,UL,CSA TRI-RATED 1KV LIGHT BLUE 100M REEL |
| TRI6 | 1X6 BS6231,UL,CSA TRI-RATED 1KV BROWN 100M REEL |
| TRI6 | 1X6 BS6231,UL,CSA TRI-RATED 1KV BLUE 100M REEL |
| TRI6 | 1X6 BS6231,UL,CSA TRI-RATED 1KV GREEN/YELLOW 100M REEL |
| TRI6 | 1X6 BS6231,UL,CSA TRI-RATED 1KV BLACK 100M REEL |
| TRI6 | 1X6 BS6231,UL,CSA TRI-RATED 1KV GREY 100M REEL |
| TRI6 | 1X6 BS6231,UL,CSA TRI-RATED 1KV RED 100M REEL |
| TRI6 | 1X6 BS6231,UL,CSA TRI-RATED 1KV YELLOW 100M REEL |
| TRI6 | 1X6 BS6231,UL,CSA TRI-RATED 1KV WHITE 100M REEL |
| TRI10 | 1X10 BS6231,UL,CSA TRI-RATED 600/1000V BROWN |
| TRI10 | 1X10 BS6231,UL,CSA TRI-RATED 600/1000V BLUE |
| TRI10 | 1X10 BS6231,UL,CSA TRI-RATED 600/1000V GREEN/YELLOW |
| TRI10 | 1X10 BS6231,UL,CSA TRI-RATED 600/1000V BLACK |
| TRI10 | 1X10 BS6231,UL,CSA TRI-RATED 600/1000V GREY |
| TRI10 | 1X10 BS6231,UL,CSA TRI-RATED 600/1000V RED |
| TRI10 | 1X10 BS6231,UL,CSA TRI-RATED 600/1000V RED 100M REEL |
| TRI10 | 1X10 BS6231,UL,CSA TRI-RATED 600/1000V YELLOW |
| TRI16 | 1X16 BS6231,UL,CSA TRI-RATED 600/1000V BROWN |
| TRI16 | 1X16 BS6231,UL,CSA TRI-RATED 600/1000V BROWN 100M REEL |
| TRI16 | 1X16 BS6231,UL,CSA TRI-RATED 600/1000V BLUE |
| TRI16 | 1X16 BS6231,UL,CSA TRI-RATED 600/1000V BLUE 100M REEL |
| TRI16 | 1X16 BS6231,UL,CSA TRI-RATED 600/1000V GREEN/YELLOW |
| TRI16 | 1X16 BS6231,UL,CSA TRI-RATED 600/1000V BLACK |
| TRI16 | 1X16 BS6231,UL,CSA TRI-RATED 600/1000V GREY |
| TRI16 | 1X16 BS6231,UL,CSA TRI-RATED 600/1000V GREY 100M REEL |
| TRI16 | 1X16 BS6231,UL,CSA TRI-RATED 600/1000V RED |
| TRI16 | 1X16 BS6231,UL,CSA TRI-RATED 600/1000V YELLOW |
| TRI25 | 1X25 BS6231,UL,CSA TRI-RATED 600/1000V BROWN |
| TRI25 | 1X25 BS6231,UL,CSA TRI-RATED 600/1000V BROWN 100M REEL |
| TRI25 | 1X25 BS6231,UL,CSA TRI-RATED 600/1000V BLUE |
| TRI25 | 1X25 BS6231,UL,CSA TRI-RATED 600/1000V BLUE 100M REEL |
| TRI25 | 1X25 BS6231,UL,CSA TRI-RATED 600/1000V GREEN/YELLOW |
| TRI25 | 1X25 BS6231,UL,CSA TRI-RATED 600/1000V GREEN/YELLOW 100M REEL |
| TRI25 | 1X25 BS6231,UL,CSA TRI-RATED 600/1000V BLACK |
| TRI25 | 1X25 BS6231,UL,CSA TRI-RATED 600/1000V BLACK 100M REEL |
| TRI25 | 1X25 BS6231,UL,CSA TRI-RATED 600/1000V GREY |
| TRI25 | 1X25 BS6231,UL,CSA TRI-RATED 600/1000V GREY 100M REEL |
| TRI25 | 1X25 BS6231,UL,CSA TRI-RATED 600/1000V YELLOW |
| TRI35 | 1X35 BS6231,UL,CSA TRI-RATED 600/1000V BROWN |
| TRI35 | 1X35 BS6231,UL,CSA TRI-RATED 600/1000V BLUE |
| TRI35 | 1X35 BS6231,UL,CSA TRI-RATED 600/1000V GREEN/YELLOW |
| TRI35 | 1X35 BS6231,UL,CSA TRI-RATED 600/1000V BLACK |
| TRI35 | 1X35 BS6231,UL,CSA TRI-RATED 600/1000V GREY |
| TRI35 | 1X35 BS6231,UL,CSA TRI-RATED 600/1000V YELLOW |
| TRI50 | 1X50 BS6231,UL,CSA TRI-RATED 600/1000V BROWN |
| TRI50 | 1X50 BS6231,UL,CSA TRI-RATED 600/1000V BLUE |
| TRI50 | 1X50 BS6231,UL,CSA TRI-RATED 600/1000V GREEN/YELLOW |
| TRI50 | 1X50 BS6231,UL,CSA TRI-RATED 600/1000V BLACK |
| TRI50 | 1X50 BS6231,UL,CSA TRI-RATED 600/1000V GREY |
| TRI50 | 1X50 BS6231,UL,CSA TRI-RATED 600/1000V YELLOW |
| TRI70 | 1X70 BS6231,UL,CSA TRI-RATED 600/1000V BROWN |
| TRI70 | 1X70 BS6231,UL,CSA TRI-RATED 600/1000V BLUE |
| TRI70 | 1X70 BS6231,UL,CSA TRI-RATED 600/1000V GREEN/YELLOW |
| TRI70 | 1X70 BS6231,UL,CSA TRI-RATED 600/1000V BLACK |
| TRI70 | 1X70 BS6231,UL,CSA TRI-RATED 600/1000V GREY |
| TRI70 | 1X70 BS6231,UL,CSA TRI-RATED 600/1000V YELLOW |
| TRI95 | 1X95 BS6231,UL,CSA TRI-RATED 600/1000 BROWN |
| TRI95 | 1X95 BS6231,UL,CSA TRI-RATED 600/1000V BLUE |
| TRI95 | 1X95 BS6231,UL,CSA TRI-RATED 600/1000V GREEN/YELLOW |
| TRI95 | 1X95 BS6231,UL,CSA TRI-RATED 600/1000V BLACK |
| TRI95 | 1X95 BS6231,UL,CSA TRI-RATED 600/1000V GREY |
| TRI95 | 1X95 BS6231,UL,CSA TRI-RATED 600/1000V YELLOW |
| TRI120 | 1X120 BS6231,UL,CSA TRI-RATED 600/1000 BROWN |
| TRI120 | 1X120 BS6231,UL,CSA TRI-RATED 600/1000V BLUE |
| TRI120 | 1X120 BS6231,UL,CSA TRI-RATED 600/1000V GREEN/YELLOW |
| TRI120 | 1X120 BS6231,UL,CSA TRI-RATED 600/1000V BLACK |
| TRI120 | 1X120 BS6231,UL,CSA TRI RATED 600/1000V GREY |
| TRI120 | 1X120 BS6231,UL,CSA TRI-RATED 600/1000V YELLOW |
| BI150 | 1X150 BS6231,UL,CSA BI RATED 600/1000V GREEN/YELLOW |
| BI150 | 1X150 BS6231,UL,CSA BI RATED 600/1000V BLACK |
| BI185 | 1X185 BS6231,UL,CSA BI RATED 600/1000V GREEN/YELLOW |
| BI185 | 1X185 BS6231,UL,CSA BI RATED 600/1000V BLACK |
| BI240 | 1X240 BS6231,UL,CSA BI RATED 600/1000V BLACK |
| BI240 | 1X240 BS6231,UL,CSA BI RATED 600/1000V GREEN/YELLOW |
| BI300 | 1X300 BS6231,UL,CSA BI RATED 600/1000V BLACK |
| BI400 | 1X400 BS6231,UL,CSA BI-RATED 600/1000V BLACK |
