F120 Enhanced Fire Resistant Mains Cable 1kV - BS7846, BS8491, MGT, XLPE, SWA, LSZH - 25mm to 400mm

OVERVIEW

Fireproof mains cable, suitable for fixed installations such as power circuits, fire alarm systems and emergency lighting. Specifically designed to meet the stringent standards of BS8491, which includes enhanced resistance to heat and fire, direct impact of 10N and water jet as would be produced by a fire fighting unit.

CABLE STANDARDS

Conforms to BS7846/ BS8491
Conforms to BS 6387, BS EN 50267, BS EN 50268
Circuit integrity: BS8519-2020 120 minutes
Acid gas emission to IEC 60754
Flame propagation to BS EN 50265,
BS EN 50266 (IEC 60332-3).
Smoke emission to IEC 61034
LPCB Approved

CONSTRUCTION

Conductor: Plain Annealed Stranded Copper Conductor
Separator: MICA/Glass Fire Barrier Tape
Insulation: Cross Link Polyethylene (XLPE)
Bedding: Low Smoke Zero Halogen (LSZH)
Armouring: Galvanised Steel Wire Armour
Sheath: Low Smoke Zero Halogen (LSZH)
Sheath Colour: Black

CHARACTERISTICS

Voltage Rating: 600/1000 volts
Temperature limits: -10°C to +90°C
Minimum Bending Radius: As Per Manufacturers Datasheet

PRODUCTS

Code	Description	Qty / Metres

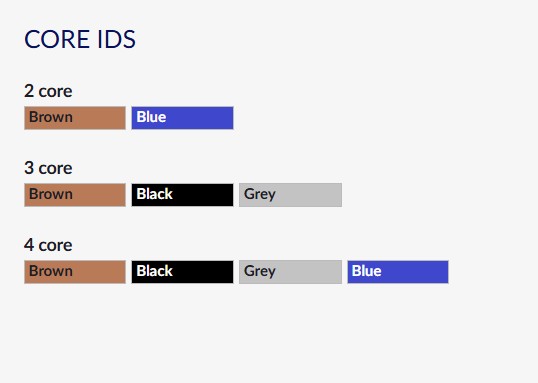

FPE2X25	2X25 MICA,XL,LZH,SWA,LZH ENHHANCED 1KV BS7846, BS8491,BS8519 CORES BRN BLK BASEC/LPCB APPROVED		Add to Quote
FPE3X25	3X25 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BASEC/LPCB APPROVED		Add to Quote
FPE4X25	4X25 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE BASEC/LPCB APPROVED		Add to Quote
FPE5X25	5X25 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE GRN/YW BASEC/LPCB APPROVED		Add to Quote
FPE2X35	2X35 MICA,XL,LZH,SWA,LZH ENHHANCED 1KV BS7846, BS8491,BS8519 CORES BRN BLK BASEC/LPCB APPROVED		Add to Quote
FPE3X35	3X35 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BASEC/LPCB APPROVED		Add to Quote
FPE4X35	4X35 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE BASEC/LPCB APPROVED		Add to Quote
FPE5X35	5X35 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE GRN/YW BASEC LPCB APPROVED		Add to Quote
FPE2X50	2X50 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE BASEC/LPCB APPROVED		Add to Quote
FPE3X50	3X50 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE BASEC/LPCB APPROVED		Add to Quote
FPE4X50	4X50 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE BASEC/LPCB APPROVED		Add to Quote
FPE5X50	5X50 MICA, XL, LZH, SWA, LZH ENHANCED 1KV BS7846, BS8491, BS8519 CORES BRN BLK GREY BLUE GRN/YW BASEC/LPCB APPROVED		Add to Quote
FPE2X70	2X70 MICA,XL,LZH,SWA,LZH ENHHANCED 1KV BS7846, BS8491,BS8519 CORES BRN BLK BASEC/LPCB APPROVED		Add to Quote
FPE3X70	3X70 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BASEC/LPCB APPROVED		Add to Quote
FPE4X70	4X70 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE BASEC/LPCB APPROVED		Add to Quote
FPE5X70	5X50 MICA, XL, LZH, SWA, LZH ENHANCED 1KV BS7846, BS8491, BS8519 CORES BRN BLK GREY BLUE GRN/YW BASEC/LPCB APPROVED		Add to Quote
FPE2X95	2X95 MICA,XL,LZH,SWA,LZH ENHHANCED 1KV BS7846, BS8491,BS8519 CORES BRN BLK BASEC/LPCB APPROVED		Add to Quote
FPE3X95	3X95 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BASEC/LPCB APPROVED		Add to Quote
FPE4X95	4X95 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE BASEC/LPCB APPROVED		Add to Quote
FPE2X120	2X120 MICA,XL,LZH,SWA,LZH ENHHANCED 1KV BS7846, BS8491,BS8519 CORES BRN BLK BASEC/LPCB APPROVED		Add to Quote
FPE3X120	3X120 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BASEC/LPCB APPROVED		Add to Quote
FPE4X120	4X120 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE BASEC/LPCB APPROVED		Add to Quote
FPE2X150	2X120 MICA,XL,LZH,SWA,LZH ENHHANCED 1KV BS7846, BS8491,BS8519 CORES BRN BLK BASEC/LPCB APPROVED		Add to Quote
FPE3X150	3X150 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BASEC/LPCB APPROVED		Add to Quote
FPE4X150	4X150 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE BASEC/LPCB APPROVED		Add to Quote
FPE2X185	2X120 MICA,XL,LZH,SWA,LZH ENHHANCED 1KV BS7846, BS8491,BS8519 CORES BRN BLK BASEC/LPCB APPROVED		Add to Quote
FPE3X185	3X185 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BASEC/LPCB APPROVED		Add to Quote
FPE4X185	4X185 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE BASEC/LPCB APPROVED		Add to Quote
FPE2X240	2X240 MICA,XL,LZH,SWA,LZH ENHHANCED 1KV BS7846, BS8491,BS8519 CORES BRN BLK BASEC/LPCB APPROVED		Add to Quote
FPE3X240	3X240 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BASEC/LPCB APPROVED		Add to Quote
FPE4X240	4X240 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE BASEC/LPCB APPROVED		Add to Quote
FPE2X300	2X300 MICA,XL,LZH,SWA,LZH ENHHANCED 1KV BS7846, BS8491,BS8519 CORES BRN BLK BASEC/LPCB APPROVED		Add to Quote
FPE3X300	3X300 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BASEC/LPCB APPROVED		Add to Quote
FPE4X300	4X300 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE BASEC/LPCB APPROVED		Add to Quote
FPE3X400	3X400 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BASEC/LPCB APPROVED		Add to Quote
FPE4X400	4X400 MICA,XL,LZH,SWA,LZH ENHANCED 1KV BS7846,BS8491,BS8519 CORES BRN BLK GREY BLUE BASEC/LPCB APPROVED		Add to Quote
