OVERVIEW

Armoured fire resistant cable, suitable for fixed installations such as power circuits, fire alarm system and emergency.
STANDARDS
  • Flame propagation to BS EN 50265, BS EN 50266 (IEC 60332-3)
  • Fire Resistant to BS7846 F2/BS6387 & CWZ
  • Acid gas emission to BS EN 50267 (IEC 60754)
  • Smoke emission to BS EN 50268 (IEC 61034)
  • BASEC Approved
CONSTRUCTION

Conductor: Plain Annealed Stranded Copper Conductor
Separator: MICA/Glass Fire Barrier Tape
Insulation: Cross Link Polyethylene (XLPE)
Bedding: LSZH
Armouring: Galvanised Steel Wire Armour
Sheath: LSZH
Sheath Colour: Black

CHARACTERISTICS

Voltage Rating: 600/1000 volts
Temperature limits: -10°C to +90°C
Minimum Bending Radius: As Per Manufacturers Datasheet

Should not be installed at temperatures below 0°C or above +40°C

PRODUCTS


CodeDescription
FP2X252X25 MICA XL LZH SWA LZH BS7846/6387 CWZ BASEC/LPCB APPROVED
FP3X253X25 MICA XL LZH SWA LZH BS7846/6387 CWZ BASEC/LPCB APPROVED
FP4X254X25 MICA XL LZH SWA LZH BS7846/6387 CWZ BASEC/LPCB APPROVED

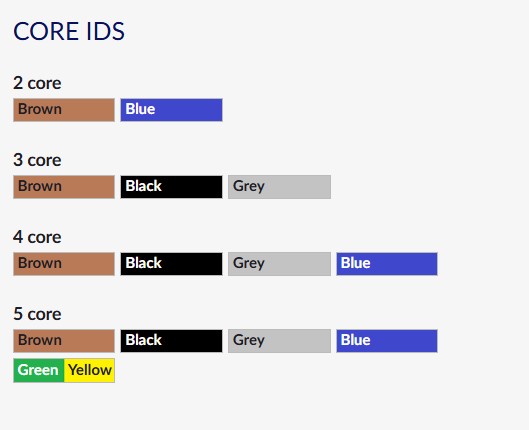

FP5X255X25 MICA XL LZH SWA LZH BS7846/6387 CWZ,CORES BROWN,BLUE,BLACK,GREY & GRN/YELLOW
FP2X352X35 MICA XL LZH SWA LZH BS7846/6387 CWZ BASEC/LPCB APPROVED
FP3X353X35 MICA XL LZH SWA LZH BS7846/6387 CWZ BASEC/LPCB APPROVED
FP4X354X35 MICA XL LZH SWA LZH BS7846/6387 CWZ BASEC/LPCB APPROVED
FP4X504X50 MICA XL LZH SWA LZH BS7846/6387 CWZ BASEC/LPCB APPROVED
FP4X704X70 MICA XL LZH SWA LZH BS7846/6387 CWZ BASEC/LPCB APPROVED
FP2X1202X120 MICA XL LZH SWA LZH BS7846/6387CWZ BASEC/LPCB APPROVED
FP2X1502X150 MICA XL LZH SWA LZH BS7846/6387CWZ BASEC/LPCB APPROVED
FP2X1852X185 MICA XL LZH SWA LZH BS7846/6387CWZ BASEC/LPCB APPROVED
FP2X2402X240 MICA XL LZH SWA LZH BS7846/6387CWZ BASEC/LPCB APPROVED
FP2X3002X300 MICA XL LZH SWA LZH BS7846/6387CWZ BASEC/LPCB APPROVED
