Protected Screened Fixed Wiring Cable - BS8436, XLPE, LSZH - 1mm to 10mm
OVERVIEW
The protected fixed wiring cable is an alternative cable which can be used in place of steel wire armoured cables or singles cables. Intended for installation in air (which includes installation in trunking or other closed systems), and in thin partitions and buillding voids when connected to a suitably selected protective device. When cables are to be installed in any other environment, reference should be made to the cable manufacturer.
STANDARDS
- 1mm2– 4mm2 & 10mm2 to BS8436
6mm2 manufactured to IS273 - BS EN 50267-1:1998
- Acid gas emissions to BS EN 50267-2-1
- Smoke emissions to BS EN 50268-2
CONSTRUCTION
Conductor: Plain Annealed Stranded Copper

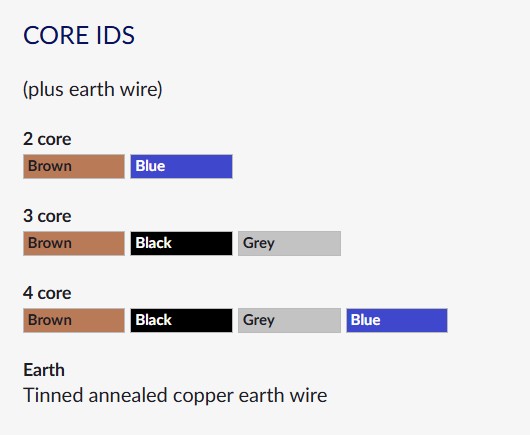

Earth: Bare tinned annealed copper earth wire
Insulation: Cross linked Polyethylene (XLPE)
Armouring: Bonded Aluminium Tube
Sheath: Low Smoke Zero Halogen (LSZH)
Sheath Colour: White
Available on Request:
- Solid Cores
- Different sheath and core colours
- 10mm2 and 16mm2
CHARACTERISTICS
Voltage Rating:
1mm2 – 4mm2: 300/500 Volts
6mm2– 10mm2: 600/1000 Volts
Temperature Limits: Do not install at temperatures below 0OC
Maximum continuous conductor operating: -20 to +90°C
Minimum Bending Radius: As per cable manufacturer datasheet
