2491B/6701B Flexible Single Core Cable - LSZH - 0.75mm to 240mm
2491B/6701B Flexible Single Core Cable - LSZH - 0.75mm to 240mm


OVERVIEW

Single core 2491B flexible cable is primarily used for wiring appliances and for use in metering and switchgear. Due to the low smoke zero halogen outer sheath they can be used in areas of high pedestrian footfall such as hospitals, supermarkets, airports and offices where toxic fumes and emissions would be a health hazard. The flexible single core cable features flexible plain annealed copper conductor and an LSZH outer sheath.

STANDARDS
  • BS EN 50525-3-41

  • BS EN 60228

  • IEC/EN 60332-1-2

  • IEC/EN 60332-3-24

  • IEC/EN 61034-1/2

  • IEC/EN 60754-1/2

CONSTRUCTION

Conductor: Flexible Plain Annealed Copper Conductor
Sheath: LSZH (Low Smoke Zero Halogen)

CHARACTERISTICS

Voltage Rating:
0.75mm2 -1.0mm2: 300/500 volts
1.5mm2 -240mm2: 450/750 volts
Temperature Limits: -15°C to +90°C
Minimum Bending Radius: As per cable manufacturer datasheet

Should not be installed at temperatures below 0°C

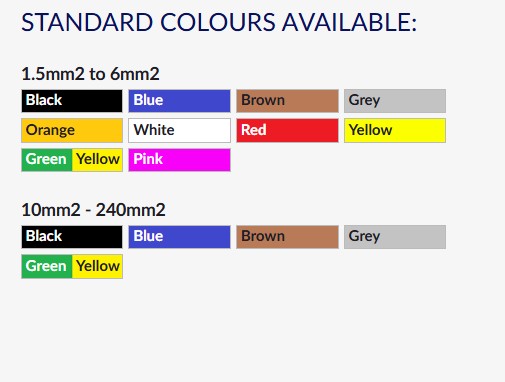

PRODUCTS

CodeDescription
2491B/756491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 0.75MMMM LSZH H05Z-K 300/500V YELLOW 90C
2491B/756491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 0.75MMMM LSZH H05Z-K 300/500V RED 90C
2491B/756491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 0.75MMMM LSZH H05Z-K 300/500V WHITE 90C
2491B/756491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 0.75MMMM LSZH H05Z-K 300/500V ORANGE 90C
2491B/756491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 0.75MMMM LSZH H05Z-K 300/500V GREEN/YELLOW 90C
2491B/756491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 0.75MMMM LSZH H05Z-K 300/500V GREY 90C
2491B/756491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 0.75MMMM LSZH H05Z-K 300/500V BROWN 90C
2491B/756491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 0.75MMMM LSZH H05Z-K 300/500V BLUE 90C
2491B/752491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 0.75MM LSZH H05Z-K 300/500V BLACK 90C
2491B16491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.0MM LSZH H05Z-K 300/500V YELLOW 90C
2491B16491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.0MM LSZH H05Z-K 300/500V RED 90C
2491B16491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.0MM LSZH H05Z-K 300/500V WHITE 90C
2491B16491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.0MM LSZH H05Z-K 300/500V ORANGE 90C
2491B16491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.0MM LSZH H05Z-K 300/500V GREEN/YELLOW 90C
2491B16491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.0MM LSZH H05Z-K 300/500V GREY 90C
2491B16491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.0MM LSZH H05Z-K 300/500V BROWN 90C
2491B16491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.0MM LSZH H05Z-K 300/500V BLUE 90C
2491B12491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.0MM LSZH H05Z-K 300/500V BLACK 90C
2491B1/52491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.5MM LSZH H07Z-K 450/750V YELLOW 90C
2491B1/52491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.5MM LSZH H07Z-K 450/750V PINK 90C
2491B1/52491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.5MM LSZH H07Z-K 450/750V RED 90C
2491B1/52491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.5MM LSZH H07Z-K 450/750V WHITE 90C
2491B1/52491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.5MM LSZH H07Z-K 450/750V ORANGE 90C
2491B1/52491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.5MM LSZH H07Z-K 450/750V GREEN/YELLOW 90C
2491B1/52491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.5MM LSZH H07Z-K 450/750V GREY 90C
2491B1/52491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.5MM LSZH H07Z-K 450/750V BROWN 90C
2491B1/52491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.5MM LSZH H07Z-K 450/750V BLUE 90C
2491B1/52491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 1.5MM LSZH H07Z-K 450/750V BLACK 90C
2491B2/56491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 2.5MM LSZH H07Z-K 450/750V YELLOW 90C
2491B2/56491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 2.5MM LSZH H07Z-K 450/750V RED 90C
2491B2/56491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 2.5MM LSZH H07Z-K 450/750V WHITE 90C
2491B2/56491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 2.5MM LSZH H07Z-K 450/750V ORANGE 90C
2491B2/56491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 2.5MM LSZH H07Z-K 450/750V GREEN/YELLOW 90C
2491B2/56491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 2.5MM LSZH H07Z-K 450/750V GREY 90C
2491B2/56491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 2.5MM LSZH H07Z-K 450/750V BLUE 90C
2491B2/56491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 2.5MM LSZH H07Z-K 450/750V BLACK 90C
2491B2/56491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 2.5MM LSZH H07Z-K 450/750V BROWN 90C
2491B46491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 4MM LSZH H07Z-K 450/750V BROWN 90C
2491B46491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 4MM LSZH H07Z-K 450/750V WHITE 90C
2491B46491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 4MM LSZH H07Z-K 450/750V GREY 90C
2491B46491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 4MM LSZH H07Z-K 450/750V GREEN/YELLOW 90C
2491B46491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 4MM LSZH H07Z-K 450/750V BLUE 90C
2491B46491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 4MM LSZH H07Z-K 450/750V YELLOW 90C
2491B46491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 4MM LSZH H07Z-K 450/750V BLACK 90C
2491B46491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 4MM LSZH H07Z-K 450/750V RED 90C
2491B66491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 6MM LSZH H07Z-K 450/750V RED 90C
2491B66491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 6MM LSZH H07Z-K 450/750V BLACK 90C
2491B66491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 6MM LSZH H07Z-K 450/750V YELLOW 90C
2491B66491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 6MM LSZH H07Z-K 450/750V BLUE 90C
2491B66491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 6MM LSZH H07Z-K 450/750V GREEN/YELLOW 90C
2491B66491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 6MM LSZH H07Z-K 450/750V GREY 90C
2491B66491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 6MM LSZH H07Z-K 450/750V WHITE 90C
2491B66491B CLASS 5 CONDUCTOR TO BS EN 50525-3-41, 6MM LSZH H07Z-K 450/750V BROWN 90C
6701B106701B CLASS 5 CONDUCTOR 1X10MM TO BS EN 50525-1:2011,10 LSZH H07Z-K 450/750V GREEN/YELLOW 90DEGC
6701B106701B CLASS 5 CONDUCTOR 1X10MM TO BS EN 50525-1:2011,10 LSZH H07Z-K 450/750 BROWN 90DEGC
6701B106701B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,10 LSZH H07Z-K 450/750V GREY 90degC
6701B106701B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,10 LSZH H07Z-K 450/750V BLUE 90degC
6701B106701B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,10 LSZH H07Z-K 450/750V BLACK 90degC
6701B166491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,16 LSZH H07Z-K 450/750V GREEN/YELLOW 90degC
6701B166491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,16 LSZH H07Z-K 450/750V BROWN 90degC
6701B166491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,16 LSZH H07Z-K 450/750V GREY 90degC
6701B166491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,16 LSZH H07Z-K 450/750 BLUE 90degC
6701B166491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,16 LSZH H07Z-K 450/750V BLACK 90degC
6701B256491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,25 LSZH H07Z-K 450/750V GREEN/YELLOW 90degC
6701B256491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,25 LSZH H07Z-K 450/750V BROWN 90degC
6701B256491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,25 LSZH H07Z-K 450/750V GREY 90degC
6701B256491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,25 LSZH H07Z-K 450/750V BLUE 90degC
6701B256491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,25 LSZH H07Z-K 450/750V BLACK 90degC
6701B356491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,35 LSZH H07Z-K 450/750V GREEN/YELLOW 90degC
6701B356491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,35 LSZH H07Z-K 450/750V BROWN 90degC
6701B356491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,35 LSZH H07Z-K 450/750V GREY 90degC
6701B356491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,35 LSZH H07Z-K 450/750V BLUE 90degC
6701B356491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,35 LSZH H07Z-K 450/750V BLACK 90degC
6701B506491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,50 LSZH H07Z-K 450/750V BLACK 90degC
6701B506491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,50 LSZH H07Z-K 450/750V BLUE 90degC
6701B506491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,50 LSZH H07Z-K 450/750V GREY 90degC
6701B506491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,50 LSZH H07Z-K 450/750V BROWN 90degC
6701B506491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,50 LSZH H07Z-K 450/750V GREEN/YELLOW 90degC
6701B706491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,70 LSZH H07Z-K 450/750V BLUE 90degC
6701B706491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,70 LSZH H07Z-K 450/750V BLACK 90degC
6701B706491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,70 LSZH H07Z-K 450/750V GREY 90degC
6701B706491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,70 LSZH H07Z-K 450/750V BROWN 90degC
6701B706491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,70 LSZH H07Z-K 450/750V GREEN/YELLOW 90degC
6701B956491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,95 LSZH H07Z-K 450/750V BLACK 90degC
6701B956491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,95 LSZH H07Z-K 450/750V BLUE 90degC
6701B956491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,95 LSZH H07Z-K 450/750V GREY 90degC
6701B956491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,95 LSZH H07Z-K 450/750V BROWN 90degC
6701B956491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,95 LSZH H07Z-K 450/750V GREEN/YELLOW 90degC
6701B1206701B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,120 LSZH H07Z-K 450/750V BLACK 90degC
6701B1206701B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,120 LSZH H07Z-K 450/750V BLUE 90degC
6701B1206701B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,120 LSZH H07Z-K GREY 90degC
6701B1206701B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,120 LSZH H07Z-K BROWN 90degC
6701B1206491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,120 LSZH H07Z-K GREEN/YELLOW 90degC
6701B1506701B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,150 LSZH H07Z-K 450/750V BLACK 90degC
6701B1506491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,150 LSZH H07Z-K 450/750V BLUE 90degC
6701B1506491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,150 LSZH H07Z-K 450/750V GREY 90degC
6701B1506491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,150 LSZH H07Z-K 450/750V BROWN 90degC
6701B1506491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,150 LSZH H07Z-K GREEN/YELLOW 90degC
6701B1856491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,185 LSZH H07Z-K 450/750V BLACK 90degC
6701B1856491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,185 LSZH H07Z-K 450/750V BLUE 90degC
6701B1856491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,185 LSZH H07Z-K 450/750V GREY 90degC
6701B1856491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,185 LSZH H07Z-K 450/750V BROWN 90degC
6701B1856491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,185 LSZH H07Z-K 450/750V GREEN/YELLOW 90degC
6701B2406491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,240 LSZH H07Z-K 450/750V BLACK 90degC
6701B2406491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,240 LSZH H072-K 450/750V BLUE 90degC
6701B2406491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,240 LSZH H07Z-K 450/750V GREY 90degC
6701B2406491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,240 LSZH H07Z-K 450/750V BROWN 90degC
6701B2406491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,240 LSZH H07Z-K 450/750V GREEN/YELLOW 90degC
6701B3006491B CLASS 5 CONDUCTOR TO BS EN 50525-1:2011,300 LSZH H07Z-K 450/750V GREEN/YELLOW 90degC
