YY Control Flexible Cable - BSEN50525-3-11, VDE 0250, LSZH - 0.75mm to 25mm
YY Control Flexible Cable - BSEN50525-3-11, VDE 0250, LSZH - 0.75mm to 25mm


OVERVIEW

YY cable is used as measuring, control and checking applications on conveyors, assembly and production lines. The low smoke zero halogen outer sheath is designed for areas of high concentrations of people where fire, smoke emissions and toxic fumes can cause a threat to life.

STANDARDS
  • GENERALLY TO BS EN 50525-3-11
  • VDE 0250
  • CY, SY and YY Cables are thoroughly tested under BSI kitemark KM712695 in our accredited lab prior to delivery.
  • The lab is audited by BSI as an independent 3rd party to verify that the testing procedures and the cable meet the standards and are fit for purpose
CONSTRUCTION

Conductor: Plain Annealed Stranded Copper Conductors
Insulation: LSZH
Sheath: LSZH
Sheath Colour: Grey

CHARACTERISTICS

Voltage Rating: 300/500 Volts
Temperature limits:
Flexing: -5°C to +70°C
Static: -20°C to +70°C
Minimum Bending Radius: As Per Manufacturers Datasheet

Should not be installed at temperatures below -5°C

PRODUCTS

CodeDescription

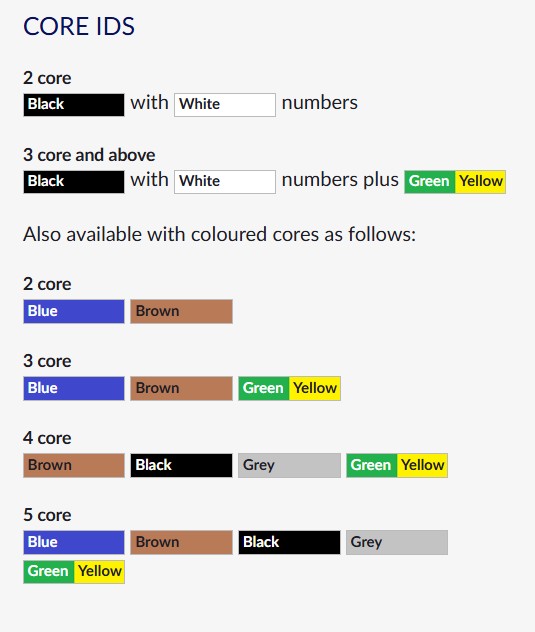

YY2X/75LSF2X0.75 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY3X/75LSF3X0.75 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY4X/75LSF4X0.75 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY5X/75LSF5X0.75 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY7X/75LSF7X0.75 LSZH, LSZH CONTROL FLEX GREY BLACK CORES WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY12X/75LSF12X0.75 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES WHITE NUMBERS 1 GREEN/YELLOW, GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY18X/75LSF18 X 0.75 LSZH,LSZH CONTROL FLEX, BLACK CORES, WHITE NUMBERS AND 1 GREEN/YELLOW. GREY OUTERSHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY25X/75LSF25X0.75 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES WHITE NUMBERS 1 GREEN/YELLOW, GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY34X/75LSF34X0.75 LSZH LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW, GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY2X1LSF2X1 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY3X1LSF3X1 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY4X1LSF4X1 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY5X1LSF5X1 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY2X1/5LSF2X1.5 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY3X1/5LSF3X1.5 LSZH, LSZH CONTROL FLEX GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY4X1/5LSF4X1.5 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY5X1/5LSF5X1.5 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY7X1/5LSF7X1.5 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY12X1/5LSF12X1.5 LSZH LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY18X1/5LSF18X1.5 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY25X1/5LSF25X1.5 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY34X1/5LSF34X1.5 LSZH LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY2X2/5LSF2X2.5 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY3X2/5LSF3X2.5 LSZH, LSZH CONTROL FLEX GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY4X2/5LSF4X2.5 LSZH, LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY5X2/5LSF5X2.5 LSZH LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY7X2/5LSF7X2.5 LSZH,LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY3X4LSF3X4 LSZH,LSZH CONTROL FLEX GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY4X4LSF4X4 LSZH,LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY5X4LSF5X4 LSZH,LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY7X4LSF7X4 LSZH,LSZH CONTROL FLEX GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY3X6LSF3X6 LSZH,LSZH CONTROL FLEX GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY4X6LSF4X6 LSZH,LSZH CONTROL FLEX GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY5X6LSF5X6 LSZH,LSZH CONTROL FLEX GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY3X10LSF3X10 LSZH,LSZH CONTROL FLEX GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY4X10LSF4X10 LSZH,LSZH CONTROL FLEX GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY5X10LSF5X10 LSZH,LSZH CONTROL FLEX GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY3X16LSF3X16 LSZH,LSZH CONTROL FLEX GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY4X16LSF4X16 LSZH,LSZH CONTROL FLEX GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY5X16LSF5X16 LSZH,LSZH CONTROL FLEX GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY3X25LSF3X25 LSZH,LSZH CONTROL FLEX GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
YY5X35LSF5X35 LSZH,LSZH CONTROL FLEX, BLACK CORES, WHITE NUMBERS AND 1 GREEN/YELLOW. GREY OUTERSHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
