BS6708 Type 7 Mining Cable - EPR, CP - 16mm to 150mm
BS6708 Type 7 Mining Cable - EPR, CP - 16mm to 150mm


OVERVIEW

Type 7 mining cable is generally used in deep mines where explosive gasses and dust can accumulate and on surface for supplying excavating, crushing machines and equipment.
STANDARDS
  • BS 6708
CONSTRUCTION

Conductor: Electrolytic, stranded, tinned copper wire IEC 60228 Class 5
Insulation: Ethylene propylene rubber (EPR) Ground core is not insulated
Seperator: Colored Textile tape for core identification
Screen: Tinned copper / Nylon braided screen over phase cores. Pilot core is not screened.

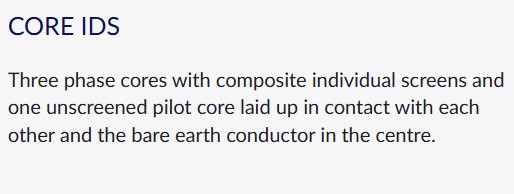

Layup: All cores are laid up in contact with the bare copper earth conductor
Bedding: Rubber based bedding compound
Outer Sheath: Heavy duty chloroprene outer sheath

CHARACTERISTICS

Voltage Rating: 640V to 1100V
Temperature Limits: Fixed: -20°C to +85°C
Minimum Bending Radius: As per cable manufacturer datasheet

Should not be installed at temperatures below 5°C or above 60°C

For more information please consult a member of the Cleveland Cable Sales Team

PRODUCTS

CodeDescription
TYPE73X163X16MM CU(CLASS 5),EPR,ITCB,PCP TYPE7 BS6708 RED COALCUTTER CORES RED/YELLOW/BROWN/BLUE
TYPE73X253X25MM CU(CLASS 5),EPR,ITCB,PCP TYPE7 BS6708 RED COALCUTTER CORES RED/YELLOW/BROWN/BLUE
TYPE73X353X35MM CU(CLASS 5),EPR,ITCB,PCP TYPE7 BS6708 BLUE COALCUTTER CORES RED/YELLOW/BROWN/BLUE
TYPE73X503X50MM CU(CLASS 5),EPR,ITCB,PCP TYPE7 BS6708 RED COALCUTTER CORES RED/YELLOW/BROWN/BLUE
TYPE73X703X70MM CU(CLASS 5),EPR,ITCB,PCP TYPE7 BS6708 RED COALCUTTER CORES RED/YELLOW/BROWN/BLUE
TYPE73X953X95MM CU(CLASS 5),EPR,ITCB,PCP TYPE7 BS6708 RED COALCUTTER CORES RED/YELLOW/BROWN/BLUE
TYPE73X1203X120MM CU(CLASS 5),EPR,ITCB,PCP TYPE7 BS6708 RED COALCUTTER CORES RED/YELLOW/BROWN/BLUE
TYPE73X1503X150MM CU(CLASS 5),EPR,ITCB,PCP TYPE7 BS6708 RED COALCUTTER CORES RED/YELLOW/BROWN/BLUE
