BS5467 Mains Cable - SWA, PVC, 1kV - 25mm to 400mm
BS5467 Mains Cable - SWA, PVC, 1kV - 25mm to 400mm


OVERVIEW

Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and within cable ducting.
STANDARDS
  • BS 5467
  • Flame propagation: BS EN 60332-1
  • BASEC Approved (* refer to construction section)
CONSTRUCTION

Conductor: Class 2 stranded copper conductor acc BS EN 60228 (previously BS 6360)
Insulation: Cross Link polyethylene (XLPE)
Bedding: Polyvinyl Chloride (PVC)
Armour: Steel Wire Armour (SWA)
Sheath: Polyvinyl Chloride PVC

The following cables are manufactured to IEC 60502-1 and are not covered by BASEC:

  • 5 Core 95mm2
  • 5 Core 120mm2
  • 5 Core 150mm2
  • 5 Core 185mm2
  • 5 Core 240mm2
CHARACTERISTICS

Voltage Rating: 1900/3300 Volts
Temperature Rating: Fixed -20°C to +90°C
Minimum Bending Radius: As Per Manufacturers Datasheet.

Should not be installed at temperatures below 0°C or above +60°C

PRODUCTS


CodeDescription

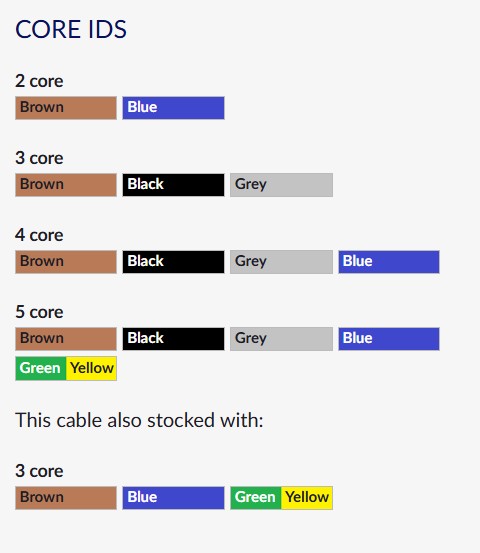

6942X252X25 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE BASEC
6943X253X25 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLACK GREY BASEC
6944X254X25 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE GREY BLK BASEC
6945X255X25 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN,BLUE,GREY,BLACK,GRN/YW BASEC
6942X352X35 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE BASEC
6943X353X35 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLACK GREY BASEC
6944X354X35 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE GREY BLK BASEC
6945X355X35 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN,BLUE,GREY,BLACK,GRN/YW BASEC
6942X502X50 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE BASEC
6943X503X50 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLACK GREY BASEC
6944X504X50 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE GREY BLK BASEC
6945X505X50 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN,BLUE,GREY,BLACK,GRN/YW BASEC
6942X702X70 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE BASEC
6943X703X70 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLACK GREY BASEC
6944X704X70 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE GREY BLK BASEC
6945X705X70 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN,BLUE,GREY,BLACK,GRN/YW BASEC
6942X952X95 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE BASEC
6943X953X95 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLACK GREY BASEC
6944X954X95 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE GREY BLK BASEC
6945X955X95 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN,BLUE,GREY,BLACK,GRN/YW (BASEC N/A)
6942X1202X120 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE BASEC
6943X1203X120 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLACK GREY BASEC
6944X1204X120 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE GREY BLK BASEC
6945X1205X120 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN, BLUE, GREY, BLACK, GRN/YW (BASEC N/A)
6942X1502X150 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE BASEC
6943X1503X150 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLACK GREY BASEC
6944X1504X150 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE GREY BLK BASEC
6945X1505X150 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN,BLUE,GREY,BLACK,GRN/YW (BASEC N/A)
6942X1852X185 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE BASEC
6943X1853X185 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLACK GREY BASEC
6944X1854X185 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE GREY BLK BASEC
6945X1855X150 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN,BLUE,GREY,BLACK,GRN/YW (BASEC N/A)
6942X2402X240 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE BASEC
6943X2403X240 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLACK GREY BASEC
6944X2404X240 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE GREY BLK BASEC
6942X3002X300 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE BASEC
6943X3003X300 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLACK GREY BASEC
6944X3004X300 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE GREY BLK BASEC
6942X4002X400 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE BASEC
6943X4003X400 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLACK GREY BASEC
6944X4004X400 XLPE,PVC,SWA,PVC 1KV BS5467 CORES BRN BLUE GREY BLK BASEC
