NYYJ Mains & Control Cable - Non-Armoured, PVC - 1.5mm to 16mm
NYYJ Mains & Control Cable - Non-Armoured, PVC - 1.5mm to 16mm


OVERVIEW

The NYY-J cable is a high-quality, robust power cable designed for fixed installations in indoor, outdoor, and underground environments. Manufactured with durable PVC insulation and sheathing, it offers excellent resistance to mechanical stress, moisture, and UV exposure.

Compliant with BSEN/IEC 60332-3-24(c), this cable ensures fire performance standards, making it suitable for applications requiring added safety. Available in sizes ranging from 1.5mm² to 16mm², the NYY-J cable is versatile for a variety of power distribution and industrial applications.

Choose the NYY-J cable for dependable, long-lasting performance and compliance with international safety standards. Ideal for both residential and commercial projects.
This cable is not suitable for direct burial.
STANDARDS
  • BS EN
  • IEC 60502-1
CONSTRUCTION

Conductor:
Up to 6mm2: Class 1 solid copper conductor
Above 10mm2: Class 2 stranded copper
Insulation: PVC (Poly Vinyl Chloride)
Filler: PVC (Poly Vinyl Chloride)
Sheath: PVC (Poly Vinyl Chloride)

CHARACTERISTICS

Voltage Rating: 600/1000 Volts
Temperature Limits: -30°C to +70°C
Minimum Bending Radius: As per cable manufacturer datasheet

Should not be installed at temperatures below 0°C

PRODUCTS


CodeDescription

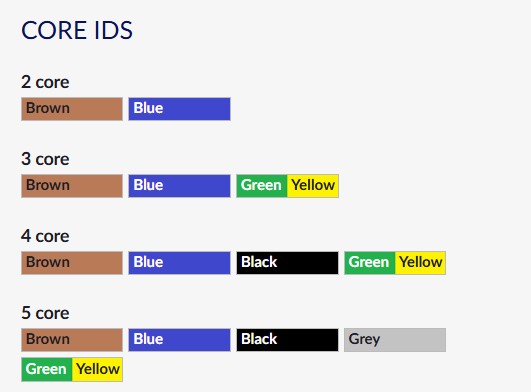

NYY2X1/5NYY-O 2X1/5 SOLID COPPER CONDUCTOR PVC, PVC, PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE CORES, BLACK OUTER SHEATH
NYY3X1/5NYY-J 3X1.5 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH
NYY3X1/5NYY-J 3X1.5 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH R100
NYY4X1/5NYY-J 4X1.5 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLACK/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH
NYY4X1/5NYY-J 4X1.5 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLACK/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH R100
NYY5X1/5NYY-J 5X1.5 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/BLACK/GREY/GREEN-YELLOW CORES, BLACK OUTER SHEATH
NYY7X1/5NYY-J 7X1.5 SOLID COPPER CONDUCTOR PVC PVC PVC 1KV VDE0276, IEC60502-1 BLACK CORES WHITE NUMBERS 1 GREEN/YELLOW BLACK OUTER SHEATH
NYY2X2/5NYY-O 2X2.5 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE CORES, BLACK OUTER SHEATH
NYY3X2/5NYY-J 3X2.5 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH
NYY3X2/5NYY-J 3X2.5 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH R100
NYY4X2/5NYY-J 4X2.5 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLACK/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH
NYY5X2/5NYY-J 5X2.5 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/BLACK/GREY/GREEN-YELLOW CORES, BLACK OUTER SHEATH
NYY7X2/5NYY-J 7X2.5 SOLID COPPER CONDUCTOR PVC, PVC, PVC 1KV VDE0276, IEC60502-1 BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW BLACK OUTER SHEATH
NYY2X4NYY-O 2X4 SOLID COPPER CONDUCTORS PVC, PVC, PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE CORES, BLACK OUTER SHEATH
NYY3X4NYY-J 3X4 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH
NYY3X4NYY-J 3X4 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH R100
NYY4X4NYY-J 4X4 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLACK/BLUE/GREEN-YELLOW CORES, BLACK OUTERSHEATH
NYY5X4NYY-J 5X4 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/BLACK/GREY/GREEN-YELLOW CORES, BLACK OUTERSHEATH
NYY2X6NYY-J 2X6 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE CORES, BLACK OUTER SHEATH
NYY3X6NYY-J 3X6 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH
NYY3X6NYY-J 3X6 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH 100M REEL
NYY4X6NYY-J 4X6 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLACK/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH
NYY5X6NYY-J 5X6 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/BLACK/GREY/GREEN-YELLOW CORES, BLACK OUTERSHEATH
NYY2X10NYY-J 2X10 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE CORES, BLACK OUTER SHEATH
NYY3X10NYY-J 3X10 CLASS 2 COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH
NYY4X10NYY-J 4X10 CLASS 2 COPPER CONDUCTORS PVC, PVC, PVC 1KV VDE0276, IEC60502-1 BROWN/BLACK/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH
NYY5X10NYY-J 5X10 CLASS 2 COPPER CONDUCTORS PVC, PVC, PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/BLACK/GREY/GREEN-YELLOWCORES, BLACK OUTER SHEATH
NYY2X16NYY-J 2X16 SOLID COPPER CONDUCTOR PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE CORES, BLACK OUTER SHEATH
NYY3X16NYY-J 3X16 CLASS 2 CU CONDUCTOR, PVC,PVC,PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH
NYY4X16NYY-J 4X16 CLASS 2 COPPER CONDUCTORS PVC, PVC, PVC 1KV VDE0276, IEC60502-1 BROWN/BLACK/BLUE/GREEN-YELLOW CORES, BLACK OUTER SHEATH
NYY5X16NYY-J 5X16 CLASS 2 COPPER CONDUCTORS PVC, PVC, PVC 1KV VDE0276, IEC60502-1 BROWN/BLUE/BLACK/GREY/GREEN-YELLOWCORES, BLACK OUTER SHEATH
