CY Control Flexible Cable - BSEN50525-3-11, VDE 0250, LSZH - 0.75mm to 2.5mm
CY Control Flexible Cable - BSEN50525-3-11, VDE 0250, LSZH - 0.75mm to 2.5mm


OVERVIEW

Low smoke zero halogen CY flexible control cable is used in installations where a screen is required to prevent interference on data and signal transmissions. The flexible cable is also used on measuring as well as checking and control equipment in areas where there is risk to life from fire, smoke emissions and toxic fumes.
STANDARDS
  • Generally to BS EN 50525-3-11
  • VDE 0250
  • CY, SY and YY Cables are thoroughly tested under BSI kitemark KM712695 in our accredited lab prior to delivery
  • The lab is audited by BSI as an independent 3rd party to verify that the testing procedures and the cable meet the standards and are fit for purpose
CONSTRUCTION

Conductor: Plain Annealed Flexible Copper
Insulation: Low Smoke Zero Halogen (LSZH)
Sheath: Low Smoke Zero Halogen (LSZH)
Sheath Colour: Grey

CHARACTERISTICS

Voltage Rating: 300/500 Volts
Temperature limits:
Flexing: -5°C to +70°C
Static: -20°C to +70°C
Minimum Bending Radius: As Per Manufacturers Datasheet

Should not be installed at temperatures below -5°C

PRODUCTS

CodeDescription

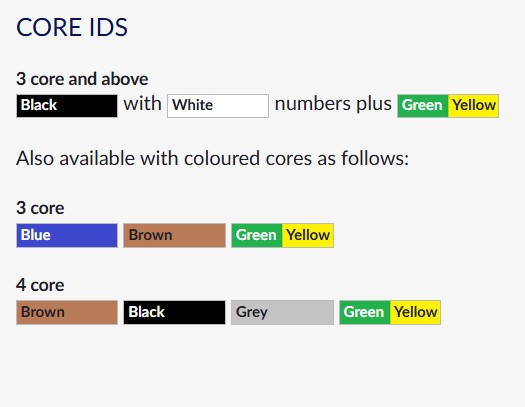

CY2X/75LSF2X0.75 LSZH TCWB LSZH CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
CY3X/75LSF3X0.75 LSZH TCWB LSZH CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
CY4X/75LSF4X0.75 LSZH TCWB LSZH CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
CY5X/75LSF5X0.75 LSZH TCWB LSZH CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
CY7X/75LSF7X0.75 LSZH TCWB LSZH CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
CY12X/75LSF12X0.75 LSZH TCWB LSZH CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V
CY18X/75LSF18X0.75 LSZH TCWB LSZH CONTROL FLEX CY GREY, BLACK CORES, WHITE NUMBERS GREEN/YELLOW, GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V
CY25X/75LSF25X0.75 LSZH TCWB LSZH CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY2X1/5LSF2X1.5 LSZH TCWB LSZH CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
CY3X1/5LSF3X1.5 LSZH TCWB LSZH CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
CY3X1/5LSFCC3X1.5 LSZH, TCWB, LSZH CONTROL FLEX, CY GREY, HAR COLOUR CODED, GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V
CY4X1/5LSF4X1.5 LSZH TCWB LSZH CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
CY4X1/5LSFCC4X1.5 LSZH, TCWB, LSZH CONTROL FLEX, CY GREY, HAR COLOUR CODED, GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V
CY5X1/5LSF5X1.5 LSZH TCWB LSZH CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
CY5X1/5LSFCC5X1.5 LSZH, TCWB, LSZH CONTROL FLEX, CY GREY, HAR COLOUR CODED, GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V
CY7X1/5LSF7X1.5 LSZH TCWB LSZH CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V
CY12X1/5LSF12X1.5 LSZH TCWB LSZH CONTROL FLEX CY GREY, BLACK CORES, WHITE NUMBERS GREEN/YELLOW, GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V
CY18X1/5LSF18X1.5 LSZH TCWB LSZH CONTROL FLEX CY GREY, BLACK CORES, WHITE NUMBERS GREEN/YELLOW, GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
CY25X1/5LSF25X1.5 LSZH TCWB LSZH CONTROL FLEX CY GREY, BLACK CORES, WHITE NUMBERS GREEN/YELLOW, GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V
CY34X1/5LSF34X1.5 LSZH TCWB LSZH CONTROL FLEX CY GREY, BLACK CORES, WHITE NUMBERS GREEN/YELLOW, GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V
CY2X2/5LSF2X2.5 LSZH TCWB LSZH CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V
CY3X2/5LSF3X2.5 LSZH TCWB LSZH CONTROL FLEX CY GREY BLACK CORES WHITE NUMBERS 1 GREEN/YELLOW GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V
CY4X2/5LSF4X2.5 LSZH TCWB LSZH CONTROL FLEX CY GREY BLACK CORES WHITE NUMBERS 1 GREEN/YELLOW GREY SHEATH GEN TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
CY4X2/5LSFCC4X2.5 LSZH, TCWB, LSZH CONTROL FLEX, CY GREY, HAR COLOUR CODED, GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V
CY4X4LSF4X4 LSZH, TCWB, LSZH CONTROL FLEX, CY GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW, GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V
CY4X4LSFCC4X4 LSZH, TCWB, LSZH CONTROL FLEX, CY GREY, HAR COLOUR CODED, GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V
CY5X4LSFCC5X4 LSZH, TCWB, LSZH CONTROL FLEX, CY GREY, HAR COLOUR CODED, GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V.
CY4X6LSF4X6 LSZH, TCWB, LSZH CONTROL FLEX, CY GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW, GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V (NOT SUITABLE FOR OUTDOOR USE)
CY4X6LSFCC4X6 LSZH, TCWB, LSZH CONTROL FLEX, CY GREY, HAR COLOUR CODED, GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V
CY5X6LSF5X6 LSZH, TCWB, LSZ CONTROL FLEX, CY GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW, GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V
CY5X6LSFCC5X6.0 LSZH, TCWB, LSZH CONTROL FLEX, CY GREY, HAR COLOUR CODED, GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V.
CY4X10LSF4X10 LSZH TCWB LSZH CONTROL FLEX CY GREY BLACK CORES WHITE NUMBERS 1 GREEN/YELLOW GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V
CY4X10LSFCC4X10 LSZH TCWB LSZH CONTROL FLEX CY GREY HAR COLOUR CODED GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V
CY5X10LSFCC5X10 LSZH, TCWB, LSZH CONTROL FLEX, CY GREY, HAR COLOUR CODED, GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V.
CY4X16LSFCC4X16 LSZH TCWB LSZH CONTROL FLEX CY GREY HAR COLOUR CODED GREY SHEATH GENERALLY TO BS EN 50525-3-11/VDE0250 300/500V
CY5X16LSFCC5X16 LSZH TCWB LSZH CONTROL FLEX CY HAR COLOUR CODED GREY SHEATH GEN TO BS EN 50525-2-11/11 VE0250 300/500V
