CY Control Flexible Cable - BSEN50525-3-11, VDE 0250, PVC - 0.50mm to 16mm
CY Control Flexible Cable - BSEN50525-3-11, VDE 0250, PVC - 0.50mm to 16mm


OVERVIEW

CY Control Flexible cable is used in similar areas as YY flexible cable (such as assembly and production lines) where there is a requirement to avoid high frequency interference.

These cables are not UV resistant but can be used outdoors if adequately protected against direct sunlight in trunking etc.
STANDARDS
  • Generally to BS EN 50525-2-11
  • VDE 0250
  • CY, SY and YY Cables are thoroughly tested under BSI kitemark KM712695 in our accredited lab prior to delivery
  • The lab is audited by BSI as an independent 3rd party to verify that the testing procedures and the cable meet the standards and are fit for purpose
CONSTRUCTION

Conductor: Plain Annealed Flexible Copper
Insulation: Polyvinyl Chloride (PVC)
Screen: Tinned Copper Wire Braiding
Sheath: Polyvinyl Chloride (PVC)
Sheath Colour: Grey

CHARACTERISTICS

Voltage Rating: 300/500 Volts
Temperature limits:
Flexing: -5°C to +70°C
Static: -20°C to +80°C
Minimum Bending Radius: As Per Manufacturers Datasheet

Should not be installed at temperatures below -5°C

PRODUCTS


CodeDescription

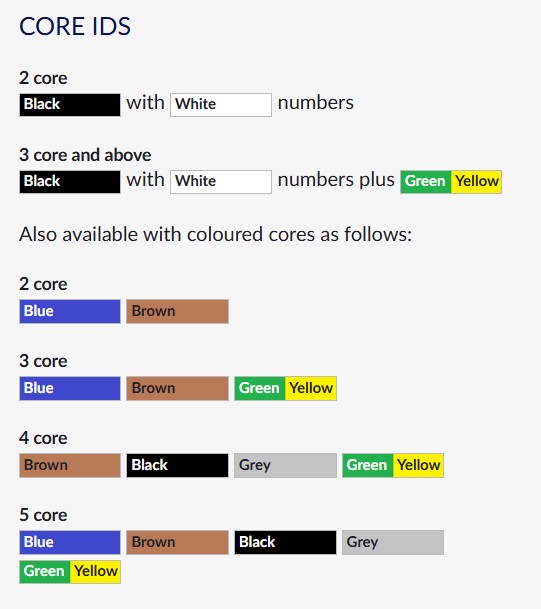

CY2X/52X0.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY3X/53X0.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY4X/54X0.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY5X/55X0.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY7X/57X0.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY2X/752X0.75 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY3X/753X0.75 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY4X/754X0.75 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY5X/755X0.75 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY7X/757X0.75 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY12X/7512X0.75 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY18X/7518X0.75 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY25X/7525X0.75 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY2X12X1 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY3X13X1 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY4X14X1 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY5X15X1 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY7X17X1 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY12X112X1 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY18X118X1 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY25X125X1 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY34X134X1 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY2X1/52X1.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY3X1/53X1.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY4X1/54X1.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY5X1/55X1.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY7X1/57X1.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY12X1/512X1.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY18X1/518X1.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY25X1/525X1.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY34X1/534X1.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY42X1/542X1.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY2X2/52X2.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY3X2/53X2.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY4X2/54X2.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY5X2/55X2.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY7X2/57X2.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY12X2/512X2.5 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY2X42X4 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY3X43X4 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY4X44X4 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY5X45X4 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY3X63X6 PVC,TCWB,PVC CONTROL FLEX CY GREY, BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW, GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY4X64X6 PVC,TCWB,PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY4X104X10 PVC TCWB PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY5X10CC5X10 PVC TCWB PVC CONTROL FLEX CY HAR COLOUR CODED GREY SHEATH GEN TO BS EN 50525-2-11/11 VE0250 300/500V
CY4X164X16 PVC TCWB PVC CONTROL FLEX CY GREY,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW,GREY SHEATH GEN TO BS EN 50525-2-11/VDE0250 300/500V
CY5X16CC5X16 PVC TCWB PVC CONTROL FLEX CY HAR COLOUR CODED GREY SHEATH GEN TO BS EN 50525-2-11/11 VE0250 300/500V
