SY Control Flexible Cable - BS EN 50525-2-11, VDE 0250, PVC - 0.75mm to 95mm
SY Control Flexible Cable - BS EN 50525-2-11, VDE 0250, PVC - 0.75mm to 95mm


OVERVIEW

SY cables are used as an interconnecting cable between fixed and mobile equipment in conveyors, assembly lines, production lines and machine tool manufacture where the galvanised steel wire braid armour gives excellent mechanical protection.

These cables are not UV resistant but can be used outdoors if adequately protected against direct sunlight in trunking etc.
STANDARDS
  • Generally to BS EN 50525-2-11
  • VDE 0250
  • CY, SY and YY Cables are thoroughly tested under BSI kitemark KM712695 in our accredited lab prior to delivery
  • The lab is audited by BSI as an independent 3rd party to verify that the testing procedures and the cable meet the standards and are fit for purpose
CONSTRUCTION

Conductor: Plain Annealed Stranded Copper Conductors
Insulation: PVC
Bedding: PVC
Armouring: Galvanised Steel Wire Braid Armour
Sheath: Transparent PVC
Sheath Colour: N/A

CHARACTERISTICS

Voltage Rating: 300/500 Volts
Temperature limits:
Static: -20°C to +80°
Flexing: -5°C to +70°C
Minimum Bending Radius: As Per Manufacturers Datasheet

Should not be installed at temperatures below -5°C

PRODUCTS


CodeDescriptionQty / Metres

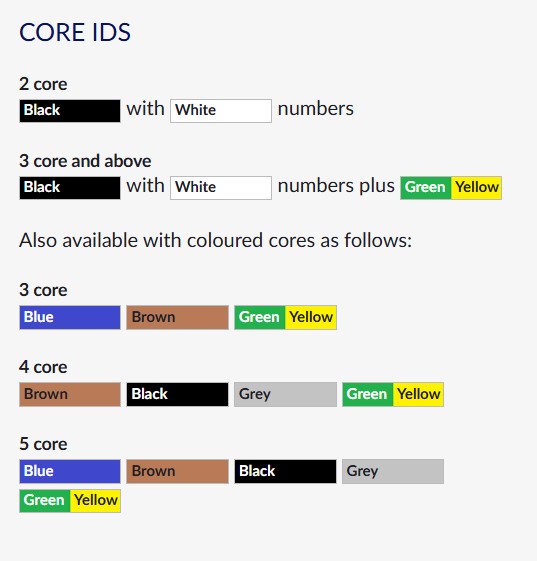

SY2X/752X0.75 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY2X75CC2X0.75 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X/753X0.75 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X/75CC3X0.75 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X/754X0.75 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X/75CC4X0.75 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X/755X0.75 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X/75CC5X0.75 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY7X/757X0.75 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY12X/7512X0.75 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY18X/7518X0.75 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY25X/7525X0.75 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY34X/7534X0.75 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY2X12X1 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X13X1 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X1CC3X1 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X14X1 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X1CC4X1 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X15X1 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X1CC5X1 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,HAR COLOUR CODED GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY7X17X1 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY12X112X1 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY18X118X1 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY25X125X1 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY34X134X1 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY50X150X1 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY2X1/52X1.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY2X1/5CC2X1/5 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X1/53X1.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X1/5CC3X1.5 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X1/54X1.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X1/5CC4X1.5 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X1/55X1.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X1/5CC5X1.5 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY7X1/57X1.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY12X1/512X1.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY18X1/518X1.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY25X1/525X1.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY34X1/534X1.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY50X1/550X1.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY2X2/52X2.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY2X2/5CC2X2.5 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X2/53X2.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X2/5CC3X2.5 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X2/54X2.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X2/5CC4X2.5 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X2/55X2.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X2/5CC5X2.5 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY7X2/57X2.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY12X2/512X2.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY18X2/518X2.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY25X2/525X2.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY34X2/534X2.5 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X43X4 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X4CC3X4 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X44X4 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X4CC4X4 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X45X4 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X4CC5X4 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY7X47X4 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X63X6 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X6CC3X6 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X64X6 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X6CC4X6 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X65X6 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X6CC5X6 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY7X67X6 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT,BLACK CORES, WHITE NUMBERS 1 GREEN/YELLOW GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X10CC3X10 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X10CC4X10 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X10CC5X10, PVC, PVC, GSWB, PVC, CONTROL FLEX, SY TRANSPARENT HAR COLOUR CODED GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY3X16CC3X16 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X16CC4X16 PVC, PVC, GSWB, PVC, CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X16CC5X16, PVC, PVC, GSWB, PVC, CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X25CC4X25 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X25CC5X25, PVC, PVC, GSWB, PVC, CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X35CC4X35 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY5X35CC5X35, PVC, PVC, GSWB, PVC, CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GEN TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X50CC4X50 PVC,PVC,GSWB,PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X70CC4X70 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
SY4X95CC4X95 PVC PVC GSWB PVC CONTROL FLEX SY TRANSPARENT HAR COLOUR CODED GENERALLY TO BS EN 50525-2-11/VDE0250 300/500V
Add to Quote
