NEK606 RFOU Power & Instrumentation Cable - Mud Resistant - 1.5mm to 35mm NEK60
NEK606 RFOU Power & Instrumentation Cable - Mud Resistant - 1.5mm to 35mm NEK60


OVERVIEW

Overview
RFOU flame retardant, halogen free power and instrumentation marine cables for fixed installation. Suitable for use in all conditions in a marine environment such as muddy, dry, wet and oily conditions meeting the requirements of NEK 606.
STANDARDS
  • IEC 60228 class 2
  • IEC 60092-353
  • IEC60754-1, 2
  • IEC60332-3/A
  • IEC61034-1, 2
  • Mud Resistant NEK606
CONSTRUCTION

Conductor: Copper Conductor
Insulation: EPR
Bedding: Halogen Free Mud Resistant Bedding
Armouring: Tinned copper wire braid
Sheath: Mud resistant sheath
Sheath Colour: Black

CHARACTERISTICS

Voltage Rating: Power Cable 600/1000 Volts *Instrumentation Cable 150-250 Volts
Temperature Limits: -40°C (fixed installation) to +90°C
Minimum Bending Radius: As per cable manufacturer datasheet

PRODUCTS

CodeDescription

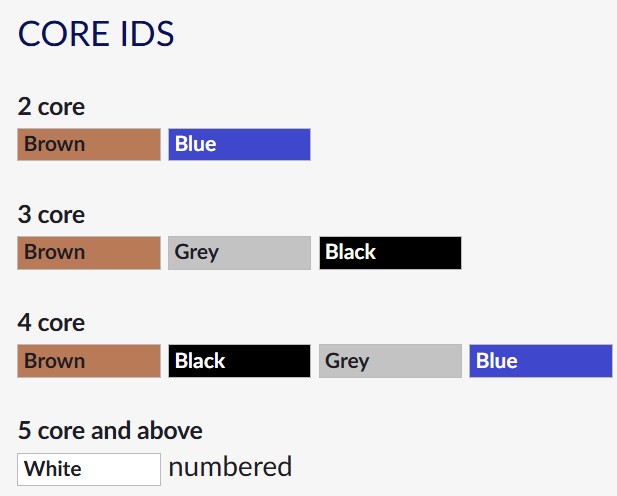

RFOU2X1/52X1.5, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN & BLUE CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU3X1/53X1.5, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU4X1/54X1.5, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BLUE BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU7X1/57X1.5, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, WHITE WITH BLACK NUMBERED CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU12X1/512X1.5, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, WHITE WITH BLACK NUMBERED CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU2X2/52X2.5, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN & BLUE CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU3X2/53X2.5, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU4X2/54X2.5, STCC CLASS2, EPR, HFC, TCWB,SHF2, BLACK SHEATH, BLUE BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU7X2/57X2.5, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, WHITE WITH BLACK NUMBERED CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU12X2/512X2.5, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, WHITE WITH BLACK NUMBERED CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU2X42X4, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN & BLUE CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU3X43X4, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU4X44X4, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BLUE BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU2X62X6, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN & BLUE CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU3X63X6, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU4X64X6, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BLUE BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU2X102X10, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN & BLUE CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU3X103X10, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU4X104X10, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BLUE BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU2X162X16, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN & BLUE CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU3X163X16, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU4X164X16, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BLUE BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU3X253X25, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU3X353X35, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU4X254X25, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BLUE BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
RFOU4X354X35, STCC CLASS2, EPR, HFC, TCWB, SHF2, BLACK SHEATH, BLUE BROWN BLACK & GREY CORES, 0.6/1 (1.2)KV NEK TS 606 CODE P1/P8 IEC60332-3-22, MUD RESISTANT
