FGT Cable - Class 2 - Non-Armoured, Aluminium, XLPE, PVC - 16mm to 185mm
FGT Cable - Class 2 - Non-Armoured, Aluminium, XLPE, PVC - 16mm to 185mm


OVERVIEW

Power distribution cable for signal operations. With Water Blocking Tape to prevent water ingress and built in fibre glass tape to make it rodent-proof.
Standards
  • Conductor to BS EN 60228 (previously BS 6360)
  • XLPE Insulation to BS7655-1-3
  • BS EN 60811-1
  • IEC 60502-1
  • Network Rail Specification NR/L2/SIGELP/27408
Construction

Conductor:
Up to 95mm2: Class 1 solid, aluminium circular or sector shaped conductor
120mm2: Avaibable in both Class 1 solid or Class 2 stranded Aluminium sector shaped
150mm2 and above: Class 2 Stranded Aluminium sector shaped
Insulation: Cross Linked Polyethylene (XLPE)
Anti Rodent Protection: Fibre glass woven tape (FGT)
Water Blocking: Water blocking tape placed under and over the FGT anti rodent protection
Moisture Barrier: Aluminium/polymer laminate tape
Sheath: Poly Vinyl Chloride (PVC)

Characteristics

Voltage Rating: 600/1000 Volts
Temperature limits: -15°C to +90°C

PRODUCTS


CodeDescription

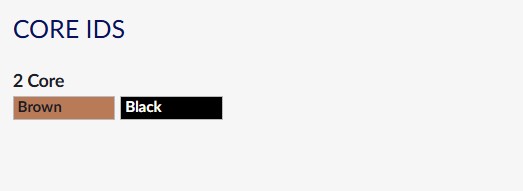

FGT2X16WBSAC2X16 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV 006/186035 NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT2X25WBSAC2X25 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV 006/186036 NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT2X35WBSAC2X35 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV 006/186037 NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT2X50WBSAC2X50 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV 006/186038 NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT2X70WBSAC2X70 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV 006/186039 NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT2X95WBSAC2X95 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV 006/186040 NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT2X120WBSAC2X120 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV 006/186041 NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT2X150WBSAC2X150 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT2X185WBSAC2X185 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT4X16WBSAC4X16 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT4X25WBSAC4X25 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT4X35WBSAC4X35 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT4X50WBSAC4X50 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT4X70WBSAC4X70 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT4X95WBSAC4X95 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT4X120WBSAC4X120 SAC,XLPE,WBT,FGT,WBT,PVC 0.6/1KV NR/L2/SIGELP/27408 BROWN,BLACK CORES
FGT3X16LSFWBSAC3X16MM SAC XLPE WBT FGT WBT PVC 0.6/1KV
FGT3X25LSFWBSAC3X25MM SAC XLPE WBT FGT WBT PVC 0.6/1KV
FGT3X35LSFWBSAC3X35MM SAC XLPE WBT FGT WBT PVC 0.6/1KV
FGT3X50LSFWBSAC3X50MM SAC XLPE WBT FGT WBT PVC 0.6/1KV
FGT3X70LSFWBSAC3X70MM SAC XLPE WBT FGT WBT PVC 0.6/1KV
FGT3X95LSFWBSAC3X95MM SAC XLPE WBT FGT WBT PVC 0.6/1KV
FGT3X120LSFWBSAC3X120MM SAC XLPE WBT FGT WBT PVC 0.6/1KV
