6181B Mains Cable - BS8573, XLPE, LSZH - 50mm to 1000mm
6181B Mains Cable - BS8573, XLPE, LSZH - 50mm to 1000mm


OVERVIEW

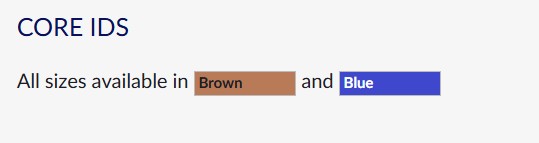

6181B is a low smoke halogen single core cable, double insulated with a voltage rating of 600/100V. General surface wire cable for fixed installation, domestic and light industrial use. Available in Blue and Brown core, with a black sheath. Comes in sizes 500mm2 - 1000mm2. As this cable is used internally, it is covered by current CPR regulations.
STANDARDS
  • BS8573 / IEC 60502
  • Acid gas emission to IEC60754
  • Smoke emission to IEC 61034
  • Flame propagation to IEC 60332
  • Low Smoke and Zero Halogen (LSZH)
CONSTRUCTION

Conductor: Plain annealed stranded circular copper conductor, single core
Insulation: Cross Link Polyethylene (XLPE)
Sheath: Low Smoke and Zero Halogen (LSZH)
Sheath Colour: Black or Grey

CHARACTERISTICS

Voltage Rating: 600/1000 Volts
Temperature limits: -25°C to +90°C
Minimum Bending Radius: As Per Manufacturers Datasheet

Should not be installed at temperatures below 0°C or above +40°C

PRODUCTS

CodeDescription
6181B501X50 CU,XLPE,BROWN,LSZH,BLACK 1KV BS8573/IEC60502
6181B701X70 CU,XLPE,BROWN,LSZH,BLACK 1KV BS8573/IEC60502
6181B951X95 CU,XLPE,BROWN,LSZH,BLACK 1KV BS8573/IEC60502
6181B1201X120 CU,XLPE,BROWN,LSZH,BLACK 1KV BS8573/IEC60502
6181B1501X150 CU,XLPE,BROWN,LSZH,BLACK 1KV BS8573/IEC60502
6181B1851X185 CU XLPE,BROWN,LSZH,BLACK 1KV BS8573/IEC60502
6181B2401X240 CU,XLPE,BROWN,LSZH,BLACK 1KV BS8573/IEC60502
6181B3001X300 CU,XLPE,BROWN,LSZH,BLACK 1KV BS8573/IEC60502
6181B4001X400 CU,XLPE,BROWN,LSZH,BLACK 1KV BS8573/IEC60502
6181B5001X500 CU,XLPE,BROWN,LSZH,BLACK 1KV BS8573/IEC60502
6181B6301X630 CU,XLPE,BROWN,LSZH,BLACK 1KV BS8573/IEC60502
6181B8001X800 CU,XLPE,BROWN,LSZH,BLACK 1KV BS8573/IEC60502
6181B10001X1000 CU,XLPE,BROWN,LSZH,BLACK 1KV BS8573/IEC60502
