BS5467 Fixed Wiring and Mains - SWA, MDPE, 1kV - 25mm to 400mm
BS5467 Fixed Wiring and Mains - SWA, MDPE, 1kV - 25mm to 400mm


OVERVIEW

The XLPE insulated cable is ideal for indoor and outdoor applications; the SWA provides mechanical protection and suitability to be installed both indoors and outdoors, through cable ducts and underground. The MDPE provides protection from moisture ingress expanding the range of applications and making it suitable for use on motorways and areas where moisture may cause a problem for cable installation.
STANDARDS
  • Generally to BS5467
  • Flame Propagation: BS EN 60332
CONSTRUCTION

Conductor: Class 2 Stranded Copper Conductor
Insulation: Cross Link Polyethylene (XLPE)
Bedding: Polyvinyl Chloride (PVC)
Armouring: Steel Wire Armour (SWA)
Sheath: Medium Density Polyethylene (MDPE)
Colour: Black

CHARACTERISTICS

Voltage Rating: 1900/3300 Volts
Temperature Rating: Fixed -20°C to +90°C
Minimum Bending Radius: As Per Manufacturers Datasheet

Should not be installed at temperatures below 0°C or above 40°C

PRODUCTS


CodeDescription

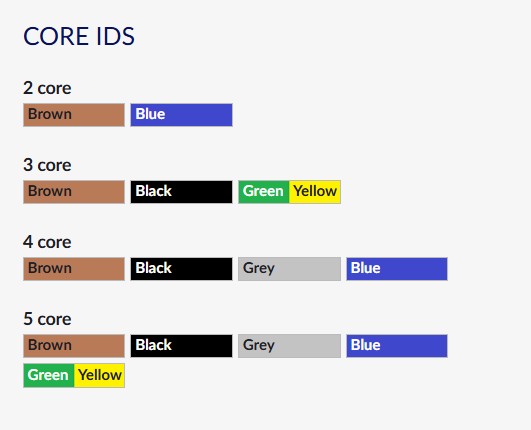

6942PE252X25 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE
6943PE253X25 XLPE PVC SWA MDPE 1KV GENERALLY TO BS5467 CORES BRN,BLUE,GRN/YW,
6944PE254X25 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE GREY BLK
6945PE255X25 XLPE,PVC,SWA,MDPE BS5467 CORES BRN,BLUE,GREY,BLACK,GRN/YW
6942PE352X35 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE
6943PE353X35 XLPE PVC SWA MDPE 1KV GENERALLY TO BS5467 CORES BRN,BLUE,GRN/YW
6944PE354X35 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE GREY BLK
6945PE355X35 XLPE,PVC,SWA,MDPE BS5467 EY,BU,BR,BK,GY
6942PE502X50 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE
6943PE503X50 XLPE PVC SWA MDPE 1KV GENERALLY TO BS5467, BRN BLUE GRN/YLW
6944PE504X50 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE GREY BLK
6945PE505X50 XLPE,PVC,SWA,MDPE BS5467 EY,BU,BR,BK,GY
6942PE702X70 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE
6943PE703X70 XLPE PVC SWA MDPE 1KV GENERALLY TO BS5467, CORES BRN BLUE GRN/YLW
6944PE704X70 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE GREY BLK
6945PE705X70 XLPE,PVC,SWA,MDPE BS5467,EY,BU,BR,BK,GY
6942PE952X95 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE
6943PE953X95 XLPE PVC SWA MDPE 1KV BS5467, CORES BRN BLUE GRN/YLW
6944PE954X95 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE GREY BLK
6945PE955X95 XLPE,PVC,SWA,MDPE BS5467 EY,BU,BR,BK,GY
6942PE1202X120 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE
6943PE1203 X 120 XLPE PVC SWA MDPE 1KV GENERALLY TO BS5467, CORES BRN BLUE GRN/YLW
6944PE1204X120 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE GREY BLK
6942PE1502X150 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE
6943PE1503 X 150 XLPE PVC SWA MDPE 1KV GENERALLY TO BS5467 CORES BRN BLUE GRN/YLW
6944PE1504X150 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE GREY BLK
6944PE1854X185 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE GREY BLK
6943PE1853 X 185 XLPE PVC SWA MDPE 1KV GENERALLY BS5467, CORES BRN BLUE GRN/YLW
6944PE1854X185 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE GREY BLK
6942PE2402X240 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE
6943PE2403 X 240 XLPE PVC SWA MDPE 1KV GENERALLY TO BS5467 , CORES BRN BLUE GRN/YLW
6944PE2404X240 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE GREY BLK
6942PE3002X300 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE
6943PE3003 X 300 XLPE PVC SWA MDPE 1KV GENERALLY TO BS5467, CORES BRN BLUE GRN/YLW
6944PE3004X300 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE GREY BLK
6943PE4003 X 400 XLPE PVC SWA MDPE 1KV GENERALLY TO BS5467, CORES BRN BLUE GRN/YLW
6944PE4004X400 XLPE PVC SWA MDPE 1KV BS5467 CORES BRN BLUE GREY BLK
