657*TQ Marine Cable - BS6883, UKOOA, EPR, LSZH - 1.5mm to 6mm
657*TQ Marine Cable - BS6883, UKOOA, EPR, LSZH - 1.5mm to 6mm


OVERVIEW

657TQ marine and offshore cables. Non-armoured cable, suitable for power, control and lighting for fixed installations in all areas aboard ships and offshore units, including accommodation and open decked areas exposed to the elements. The cable should be installed where there is no risk of mechanical damage.
STANDARDS
  • BS6883
  • IEC60332-1
  • IEC60332-3-22
  • IEC60754-1, 2
  • IEC61034-1, 2
CONSTRUCTION

Conductor: Tinned copper conductor
Insulation: Ethylene propylene rubber (EPR)
Sheath: Low smoke zero halogen (LSZH) SW4

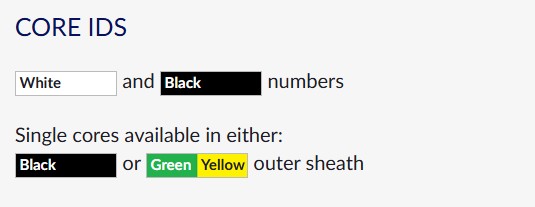

Sheath Colour: Multi core available in Black; Single core available in Black or Green/Yellow

CHARACTERISTICS

Voltage Rating: 600/1000 Volts
Temperature Limits: -40°C (fixed installation) to +90°C
Minimum Bending Radius: As per cable manufacturer datasheet

Should not be installed at temperatures below -15°C

PRODUCTS

CodeDescription
6571TQ1/51X1.5 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF102
6572TQ1/52X1.5(7) EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 1KV,WF202
6573TQ1/53X1.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK, WF302
6574TQ1/54X1.5(7) EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 1KV,WF402
6575TQ1/55X1.5MM EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF502
6576TQ1/56X1.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK
6577TQ1/57X1.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF702
6578TQ1/58X1.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK
6570/10TQ1/510X1.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK
6570/12TQ1/512X1.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WFA02
6570/19TQ1/519X1.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WFB02
6570/27TQ1/527X1.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK, WFC02
6570/30TQ1/530X1.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK
6570/37TQ1/537X1.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK
6571TQ2/51X2.5 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF103
6571TQ2/51X2.5 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE103
6572TQ2/52X2.5 EPR, WHITE CORES, BLACK NUMBERS,SW4, BS6883 BLACK,WF203
6573TQ2/53X2.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF303
6574TQ2/54X2.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF403
6575TQ2/55X2.5MM EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF503
6576TQ2/56X2.5MM EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK
6577TQ2/57X2.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF703
6578TQ2/58X2.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK
6570/10TQ2/510X2.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK
6570/12TQ2/512X2.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WFA03
6570/19TQ2/519X2.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF303
6570/27TQ2/527X2.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WFC03
6570/30TQ2/530X2.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK
6570/37TQ2/537X2.5 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK
6571TQ41X4 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF104
6571TQ41X4 EPR,CSP BS6883 GREY (BLACK#4100)
6571TQ41X4 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE104
6572TQ42X4 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF204
6573TQ43X4 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 1KV, WF304
6574TQ44X4 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF404
6575TQ45X4MM EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF504
6577TQ47X4MM EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK
6571TQ61X6 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF106
6571TQ61X6 EPR,CSP BS6883 GREY (BLACK#4101)
6571TQ6EY1X6 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE106
6572TQ62X6 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF206
6573TQ63X6 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 1KV,WF306
6574TQ64X6 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF406
