OVERVIEW

The MGT / EPR marine cable is primarily designed for fixed wiring installations in ships and other offshore units. These can be installations such as safety and emergency lighting, shut down control systems, gas detectors, alarm systems and fire pump systems. They are particularly ideal for social areas such as control rooms, computer suites and accommodation/kitchen facilities. Due to their construction, they are suitable for use in accommodation units and IT suites.
Standards
  • BS7917/BS6883
  • UKOOA design
  • IEC60332-1
  • IEC60332-3-22
  • IEC60754-1,2
  • IEC61034-1,2
  • IEC60331-21
Construction

Conductor: Tinned stranded circular copper conductor

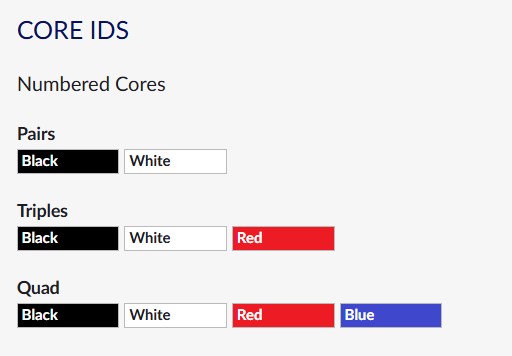

Insulation: MICA Glass Tape (MGT) with EPR GP4 insulation laid in pairs, triples or quads. Wrapped in polyester tape
Screen: Overall screened with aluminium backed polyester tape
Drain Wire: Tinned Copper
Bedding: LSF Flame retardant halogen free bedding
Inner Sheath: PET tape and rubberised polyamide tape
Armouring: Galvanised steel wire armour braid with PET tape over armour
Sheath: Low Smoke Zero Halogen (LSZH) SW4
Sheath Colour: Grey, Blue or Black

Characteristics

Voltage Rating: 150/250 Volts
Temperature Limits: -40°C (fixed installation) to +90°C
Minimum Bending Radius: As per cable manufacturer datasheet

Should not be installed at temperatures below -15°C

PRODUCTS


CodeDescription
GPF001X2X0.75 UKOOA GPF00 IEC60331-21 MICA/EPR/IND/SW4/GWSB/SW4/GREY 150/250V
GMF001X2X0.75 UKOOA GMF00 IEC60331-21 MICA/EPR/IND/SW4/GWSB/SW4/BLUE 150/250V
GPX001X4X0.75 UKOOA GPX00 IEC60331-21 MICA EPR OVERALL SCREEN SW4 GSWB SW4 GREY 150/250V
GMX001X4X0.75 UKOOA GMX00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPH003X2X0.75 UKOOA GPH00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMH003X2X0.75 UKOOA GMH00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPJ007X2X0.75 UKOOA GPJ00 IEC60331-21 MICA, EPR, INDIVIDUAL SCREEN, SW4, GSWB, SW4, GREY 150/250V
GMJ007X2X0.75 UKOOA GMJ00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPK0012X2X0.75 UKOOA GPK00 IEC60331-21 MICA, EPR, INDIVIDUAL SCREEN, SW4, GSWB, SW4 GREY 150/250V
GMK0012X2X0.75 UKOOA GMK00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPL0020X2X0.75 UKOOA GPL00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GML0020X2X0.75 UKOOA GML00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPM0027X2X0.75 UKOOA GPM00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMM0027X2X0.75 UKOOA GMM00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPR001X3X0.75 UKOOA GMR00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMR001X3X0.75 UKOOA GMR00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPS003X3X0.75 UKOOA GPS00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMS003X3X0.75 UKOOA GMS00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPT007X3X0.75 UKOOA GMT00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMT007X3X0.75 UKOOA GMT00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPU0012X3X0.75 UKOOA GMU00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMU0012X3X0.75 UKOOA GMU00 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPF011X2X1.0 UKOOA GPF01 IEC60331-21 MICA,EPR,INDIVIDUAL SCREEN,SW4,GWSB,SW4,GREY 150/250V
GMF011X2X1.0 UKOOA GMF01 IEC60331-21 MICA, EPR, INDIVIDUAL SCREEN, SW4, GWSB, SW4, BLUE 150/250V
GPX011X4X1.0 UKOOA GPX01 IEC60331-21 MICA EPR IND SCRN SW4 GSWB SW4 GREY 150/240V
GMX011X4X1.0 UKOOA GMX01 IEC60331-21 MICA, EPR, INDIVIDUAL SCREEN. SW4. GWSB, SW4, BLUE 150/250V
GPH013X2X1.0 UKOOA GPH01 IEC60331-21 MICA,EPR,IND SCRN,SW4,GSWB,SW4,GREY 150/250V
GMH013X2X1.0 UKOOA GMH01 IEC60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GPJ017X2X1.0 UKOOA GPJ01 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMJ017X2X1.0 UKOOA GMJ01 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPK0112X2X1.0 UKOOA GPK01 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMK0112X2X1.0 UKOOA GMK01 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPL0120X2X1.0 UKOOA GPL01 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GML0120X2X1.0 UKOOA GML01 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPM0127X2X1.0 UKOOA GPM01 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMM0127X2X1.0 UKOOA GMM01 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPR011X3X1.0 UKOOA GPR01 IEC60331-21 MICA, EPR, INDIVIDUAL SCREEN, SW4, GSWB, SW4 GREY 150/250V
GMR011X3X1.0 UKOOA GMR01 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPS013X3X1.0 UKOOA GPS01 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMS013X3X1.0 UKOOA GMS01 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPT017X3X1.0 UKOOA GPT01 IEC60331-21 MICA, EPR, INDIVIDUAL SCREEN, SW4, GSWB, SW4, GREY 150/250V
GMT017X3X1.0 UKOOA GMT01 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPU0112X3X1.0 UKOOA GPU01 IEC60331-21 MICA, EPR, INDIVIDUAL SCREEN, SW4, GSWB, SW4, GREY 150/250V
GMU0112X3X1.0 UKOOA GMU01 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPF021X2X1.5 UKOOA GPF02 IEC60331-21 MICA,EPR,INDIVIDUAL SCREEN,SW4,GWSB,SW4,GREY 150/250V
GMF021X2X1.5 UKOOA GMF02 IEC60331-21 MICA,EPR,INDIVIDUAL SCREEN,SW4,GWSB,SW4,BLUE 150/250V
GPG022X2X1.5 UKOOA GPG02 BS6883/7917, IEC60331-21 MICA, EPR, PAIRS INDIVIDUALLY SCREENED, SW4, GSWB, SW4, GREY 150/250V
GPX021X4X1.5 UKOOA GPX02 IEC60331-21 MICA,EPR,COLLECTIVE SCREEN,SW4,GWSB,SW4,GREY 150/250V
GMX021X4X1.5 UKOOA GMX02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPH023X2X1.5 UKOOA GPH02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMH023X2X1.5 UKOOA GMH02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPJ027X2X1.5 UKOOA GPJ02 IEC60331-21 MICA, EPR, INDIVIDUAL SCREEN, SW4, GSWB, SW4, GREY 150/250V
GMJ027X2X1.5 UKOOA GMJ02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPK0212X2X1.5 UKOOA GPK02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMK0212X2X1.5 UKOOA GMK02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPL0220X2X1.5 UKOOA GPL02 BS6883/7917, IEC60331-21 MICA, EPR, INDIVIDUAL SCREEN, SW4, GSWB, SW4, GREY 150/250V
GML0220X2X1.5 UKOOA GML02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GNL0220X2X1.5 UKOOA GNL02 BS6883/7917, IEC60331-21 MICA,EPR,OVERALL SCREENED,SW4,GWSB,SW4,GREY 150/250V
GPM0227X2X1.5 UKOOA GPM02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMM0227X2X1.5 UKOOA GMM02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPR021X3X1.5 UKOOA GPR02 BS6883/7917, IEC60331-21 MICA,INDIVIDUAL SCREEN,SW4,GSWB,SW4 GREY 150/250V
GMR021X3X1.5 GMR02 IEC60331 MGT EPR, INDIVIDUAL SCREEN, SW4, GSWB, SW4, BLUE 150/250V
GPS023X3X1.5 UKOOA GPS02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMS023X3X1.5 UKOOA GMS02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPT027X3X1.5 UKOOA GPT02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMT027X3X1.5 UKOOA GMT02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPU0212X3X1.5 UKOOA GPU02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/GREY 150/250V
GMU0212X3X1.5 UKOOA GMU02 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
GPF031X2X2.5 UKOOA GPF03 IEC60331-21 MICA,EPR,INDIVIDUAL SCREEN, SW4, GSWB, SW4 GREY 150/250V
GMF031X2X2.5 UKOOA GMF03 IEC 60331-21 MICA/EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
