657*TQ Marine Cable - BS6883, UKOOA, EPR, LSZH - 10mm to 630mm
657*TQ Marine Cable - BS6883, UKOOA, EPR, LSZH - 10mm to 630mm


OVERVIEW

657TQ Marine and offshore cables. Non armoured cable, suitable for power, control and lighting for fixed installations in all areas in ships and offshore units including accommodation and open decked areas exposed to the elements. The cable should be installed where there is no risk of mechanical damage.
STANDARDS
  • BS6883
  • IEC60332-1
  • IEC60332-3-22
  • IEC60754-1, 2
  • IEC61034-1, 2
CONSTRUCTION

Conductor: Tinned copper conductor
Insulation: Ethylene propylene rubber (EPR)
Sheath: Low smoke zero halogen (LSZH) SW4

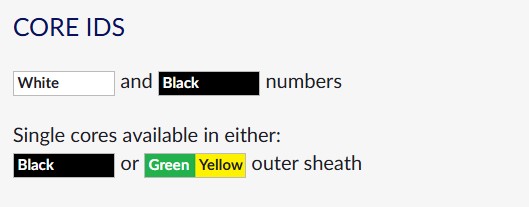

Sheath Colour: Multi core available in Black, Single core available in Black or Green/Yellow

CHARACTERISTICS

Voltage Rating: 600/1000 Volts
Temperature Limits: -40°C to +90°C
Minimum Bending Radius: As per cable manufacturer datasheet

Should not be installed at temperaturesbelow -15°C

PRODUCTS

CodeDescription
6571TQ101X10 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF110
6571TQ101X10 EPR,CSP BS6883 GREY (BLACK#4102)
6571TQ10EY1X10 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE110
6572TQ102X10 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK, WF210
6573TQ103X10 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF310
6574TQ104X10 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF410
6571TQ161X16 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF116
6571TQ161X16 EPR,CSP BS6883 GREY (BLACK#4103)
6571TQ16EY1X16 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE116
6572TQ162X16 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK, WF216
6573TQ163X16 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF316
6574TQ164X16 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF416
6571TQ251X25 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF125
6571TQ251X25 EPR,CSP BS6883 GREY (BLACK#4104)
6571TQ25EY1X25 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE125
6572TQ252X25 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF225
6573TQ253X25 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF325
6574TQ254X25 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF425
6571TQ351X35 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF135
6571TQ351X35 EPR,CSP BS6883 GREY (BLACK#4105)
6571TQ35EY1X35 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE135
6572TQ352X35 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF235
6573TQ353X35 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF335
6574TQ354X35 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF435
6571TQ501X50 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF150
6571TQ501X50 EPR,CSP BS6883 GREY (BLACK#4104)
6571TQ50EY1X50 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE150
6572TQ502X50 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK, WF250
6573TQ503X50 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF350
6574TQ504X50 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF450
6571TQ701X70 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF170
6571TQ701X70 EPR,CSP BS6883 GREY (BLACK#4107)
6571TQ70EY1X70 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE170
6573TQ703X70 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK, WF370
6574TQ704X70 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK,WF470
6571TQ951X95 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF195
6571TQ951X95 EPR,CSP BS6883 GREY (BLACK#4108)
6571TQ95EY1X95 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE195
6573TQ953X95 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK, WF395
6574TQ954X95 EPR,WHITE CORES, BLACK NUMBERS,SW4 BS6883 BLACK
6571TQ1201X120 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF10A
6571TQ1201X120 EPR,CSP BS6883 GREY (BLACK#4109)
6571TQ120EY1X120 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE10A
6573TQ1203X120 EPR,WHITE CORES, BLACK NUMBERS,CSP BS6883 BLACK,WF30A
6571TQ1501X150 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF10B
6571TQ1501X150 EPR,CSP BS6883 GREY (BLACK#4110)
6571TQ1501X150 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE10B
6571TQ1851X185 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF10C
6571TQ1851X185 EPR,CSP BS6883 GREY (BLACK#4111)
6571TQ1851X185 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE10C
6571TQ2401X240 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF10D
6571TQ2401X240 EPR,CSP BS6883 GREY (BLACK#4112)
6571TQ2401X240 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE10D
6571TQ3001X300 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF10E
6571TQ3001X300 EPR,CSP BS6883 GREY (BLACK#4113)
6571TQ3001X300 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE10E
6571TQ4001X400 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF10F
6571TQ4001X400 EPR,CSP BS6883 GREY (BLACK#4114)
6571TQ4001X400 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE10F
6571TQ5001X500 EPR,WHITE INSULATION,LSZH,SW4 BLACK,BS6883,IEC60332-1,UK00A,WF10G
6571TQ5001X500 EPR,CSP BS6883 GREY (BLACK#4115)
6571TQ5001X500 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE10G
6571TQ6301X630 EPR,WHITE INSULATION,LSZH,SW4 GREEN/YELLOW,BS6883,IEC60332-1,UK00A,WE10H
