658*TQ Marine Cable - BS6883, UKOOA, EPR, SWB, LSZH - 1.5mm to 4mm
658*TQ Marine Cable - BS6883, UKOOA, EPR, SWB, LSZH - 1.5mm to 4mm


OVERVIEW

658TQ Armoured Marine & offshore cables. Suitable for fixed installation in an offshore application, open decked areas and drilling rigs and platforms.
STANDARDS
  • BS6883
  • IEC60332-1
  • IEC60332-3-22
  • IEC60754-1, 2
  • IEC61034-1, 2
CONSTRUCTION

Conductor: Tinned copper conductor
Insulation: Ethylene propylene rubber (EPR)
Bedding: Low smoke, zero halogen (LSZH)
Armouring: Galvanised steel wire braid
Sheath: Low smoke zero halogen (LSZH) SW4
Sheath Colour: Black

CHARACTERISTICS

Voltage Rating: 600/1000 Volts
Temperature Limits: -40°C (fixed installation) to +90°C
Minimum Bending Radius: As per cable manufacturer datasheet

Should not be installed at temperatures below -15°C

PRODUCTS


CodeDescription

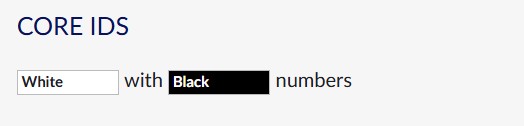

6582TQ1/52X1.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3.22,IEC60754-1,2,IEC61034-1,2,UK00A,WB202
6583TQ1/53X1.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3.22,IEC60754-1,2,IEC61034-1,2,UK00A,WB302
6584TQ1/54X1.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WB402
6585TQ1/55X1.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WB502
6586TQ1/56X1.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WB602
6587TQ1/57X1.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WB702
6580/12TQ1/512X1.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WBA02
6580/19TQ1/519X1.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WBB02
6580/27TQ1/527X1.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WBC02
6580/37TQ1/537X1.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A WBD02
6582TQ2/52X2.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3.22,IEC60754-1,2,IEC61034-1,2,UK00A,WB203
6583TQ2/53X2.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3.22,IEC60754-1,2,IEC61034-1,2,UK00A,WB303
6584TQ2/54X2.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WB403
6585TQ2/55X2.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WB503
6586TQ2/56X2.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WB603
6587TQ2/57X2.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WB703
6580/12TQ2/512X2.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WBA03
6580/19TQ2/519X2.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WBB03
6580/27TQ2/527X2.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WBC03
6580/37TQ2/537X2.5 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A
6582TQ42X4 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3.22,IEC60754-1,2,IEC61034-1,2,UK00A,WB204
6583TQ43X4 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3.22,IEC60754-1,2,IEC61034-1,2,UK00A,WB304
6584TQ44X4 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WB404
6585TQ45X4 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WB504
6587TQ47X4 EPR,WHITE CORES WITH BLACK NUMBERS,SW4,GSWB,SW4,BLACK,BS6883,90 DEG C,IEC60332-1,IEC60332-3-22,IEC60754-1,2,IEC61034-1,2,UK00A,WB704
