OVERVIEW

The EPR marine cable is primarily designed for fixed wiring installations in ships and other offshore units. These can be installations such as safety and emergency lighting, shut down control systems, gas detectors, alarm systems and fire pump systems. They are particularly ideal for social areas such as control rooms, computer suites and accommodation / kitchen facilities.
Standards
  • BS6883
  • UKOOA
  • IEC60332-1
  • IEC60332-3-22
  • IEC60754-1,2
  • IEC61034-1,2
Construction

Conductor: Tinned stranded circular copper conductor

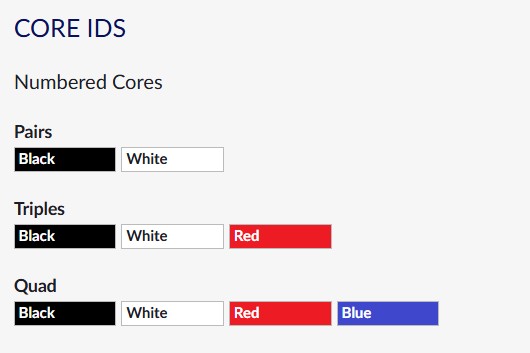

Insulation: EPR GP4 insulation laid in pairs, triples or quads. Wrapped in polyester tape
Screen: Individually screened with aluminium backed polyester tape
Drain Wire: Tinned Copper
Bedding: LSF Flame retardant halogen free bedding
Inner Sheath: PET tape and rubberised polyamide tape
Armouring: Galvanised steel wire armour braid with PET tape over armour
Sheath: Low Smoke Zero Halogen (LSZH) SW4
Sheath Colour: Grey, Blue or Black

Characteristics

Voltage Rating: 150/250 volts
Temperature Rating: Temperature limits: -40°C (fixed installation) to +90°C
Minimum Bending Radius: As Per Manufacturers Datasheet

Should not be installed at temperaturesbelow -15°C

PRODUCTS

CodeDescription
KKF001X2X0.75 UKOOA KKF00 IEC60332-1 EPR/IND/SW4/GSWB/SW4/GREY 150/250V
KHF001X2X0.75 UKOOA KHF00 IEC60332-1 EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
KKX001X4X0.75 UKOOA KKX00 IEC60332-1 EPR OVERSCREENED SW4 GSWB SW4 GREY 150/250V
KHX001X4X0.75 UKOOA KHX00 IEC60332-1 EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
KKH003X2X0.75 UKOOA KKH00 IEC60332-1 EPR, INDIVIDUAL SCREEN, SW4, GSWB, SW4 GREY 150/250V
KKJ007X2X0.75 UKOOA KKJ00 IEC60332-1 EPR, INDIVIDUAL SCREEN, SW4, GWSB, SW4 GREY 150/250V
KKK0012X2X0.75 UKOOA KKK00 IEC60332-1 EPR, IND SCRN, SW4, GWSB, SW4 GREY 150/250V
KKL0020X2X0.75 UKOOA KKL00 IEC60332-1 EPR/IND/SW4/GSWB/SW4/GREY 150/250V
KHH003X2X0.75 UKOOA KHH00 IEC60332-1 EPR, INDIVIDUAL SCREEN, SW4, GSWB, SW4 BLUE 150/250V
KHJ007X2X0.75 UKOOA KHJ00 IEC60332-1 EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
KHK0012X2X0.75 UKOOA KHK00 IEC60332-1 EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
KHL0020X2X0.75 UKOOA KHL00 IEC60332-1 EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
KKF011X2X1.0 UKOOA KKF01 IEC60332-1 EPR, INDIVIDUAL SCREEN, SW4, GSWB, SW4, GREY 150/250V
KHF011X2X1.0 UKOOA KHF01 IEC60332-1 EPR,INDIVIDUAL SCREEN,SW4,GWSB,SW4,BLUE 150/250V
KKX011X4X1.0 UKOOA KKX01 IEC60332-1 EPR INDIVIDUAL SCREEN SW4 GSWB SW4 GREY 150/250V
KHX011X4X1.0 UKOOA KHX01 IEC60332-1 EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
KKF021X2X1.5 UKOOA KKF02 IEC60332-1 EPR,INDIVIDUAL SCREEN,SW4,GWSB,SW4,GREY 150/250V
KHG022X2X1.5 UKOOA KHG02 IEC60332_1 EPR, INDIVIDUAL SCREEN, SW4, GSWB, SW4 BLUE 150/250
KKG022X2X1.5 UKOOA KKG02 IEC60332-1 EPR, INDIVIDUAL SCREEN, SW4, GSWB, SW4 GREY 150/250V
KHF021X2X1.5 UKOOA KHF02 IEC60332-1 EPR,INDIVIDUAL SCREEN,SW4,GWSB,SW4,BLUE 150/250V
KKX021X4X1.5 UKOOA KKX02 IEC60332-1 EPR,OVERSCREENED,SW4,GWSB,SW4,GREY 150/250V
KHX021X4X1.5 UKOOA KHX02 IEC60332-1 EPR, INDIVIDUALLY SCREENED, SW4, GWSB SW4 BLUE 150/250V
KKH023X2X1.5 UKOOA KKH02 IEC60332-1 EPR/IND/SW4/GSWB/SW4/GREY 150/250V
KKJ027X2X1.5 UKOOA KKJ02 IEC60332-1 EPR/IND/SW4/GSWB/SW4/GREY 150/250V
KKK0212X2X1.5 UKOOA KKK02 IEC60332-1 EPR/IND/SW4/GSWB/SW4/GREY 150/250V
KKL0220X2X1.5 UKOOA KKL02 IEC60332-1 EPR/IND/SW4/GSWB/SW4/GREY 150/250V
KHH023X2X1.5 UKOOA KHH02 IEC60332-1 EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
KHJ027X2X1.5 UKOOA KHJ02 IEC60332-1 EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
KHK0212X2X1.5 UKOOA KHK02 IEC60332-1 EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
KHL0220X2X1.5 UKOOA KHL02 IEC60332-1 EPR/IND/SW4/GSWB/SW4/BLUE 150/250V
KHF031X2X2.5 UKOOA KHF03 IEC60332-1 EPR/IND/SW4/GSWB/SW4/GREY 150/250V
