IEC60092-353 (XI) Shipboard Cable - XLPE, LSZH - 1.5mm to 25mm
IEC60092-353 (XI) Shipboard Cable - XLPE, LSZH - 1.5mm to 25mm


OVERVIEW

Fixed installation for power, control, and lighting in safe areas, emergency and critical marine applications.

This cable has previously been referred to as 657*ZH.
Standards
  • IEC60092-353
  • IEC60228 Class 2
  • IEC60092-360
  • IEC60754-1 & IEC60754-2
  • IEC61034-1 & IEC60134-2
  • IEC60332-1
  • IEC60332-3-22 Cat. A
Construction

Conductor: Tinned copper conductor
Insulation: XLPE in accordance with IEC60092-360
Bedding: Halogen free compound (polyester tape used in multi-cores)
Sheath: Halogen free extruded SHF1 compound
Sheath Colour: Black

Characteristics

Voltage Rating: 600/1000 Volts
Temperature Limits: -40°C to +90°C
Minimum Bending Radius: As per cable manufacturer datasheet

Should not be installed at temperatures below -15°C

PRODUCTS


CodeDescription
6572ZH1/52x1.5MM, BROWN, BLUE CORES, XLPE, LSZH, 1KV, BLACK
6573ZH1/53x1.5MM, BROWN, BLACK, GREY CORES, XLPE, LSZH, 1KV, BLACK
6574ZH1/54x1.5MM, BROWN, BLACK, GREY, BLUE CORES, XLPE, LSZH, 1KV, BLACK

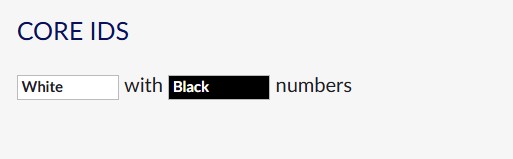

6575ZH1/55x1.5MM, WHITE CORES, BLACK NUMBERS, XLPE, LSZH, 1KV, BLACK
6577ZH1/57x1.5MM, WHITE CORES, BLACK NUMBERS, XLPE, LSZH, 1KV, BLACK
6570/12ZH1/512x1.5MM, WHITE CORES, BLACK NUMBERS, XLPE, LSZH, 1KV, BLACK
6570/19ZH1/519x1.5MM, WHITE CORES, BLACK NUMBERS, XLPE, LSZH, 1KV, BLACK
6570/27ZH1/527x1.5MM, WHITE CORES, BLACK NUMBERS, XLPE, LSZH, 1KV, BLACK
6570/37ZH1/537x1.5MM, WHITE CORES, BLACK NUMBERS, XLPE, LSZH, 1KV, BLACK
6572ZH2/52x2.5MM, BLACK, BLUE CORES, XLPE, LSZH, 1KV, BLACK
6573ZH2/53x2.5MM, BROWN, BLACK, GREY CORES, XLPE, LSZH, 1KV, BLACK
6574ZH2/54x2.5MM, BROWN, BLACK, BLUE, GREY CORES, XLPE, LSZH, 1KV, BLACK
6575ZH2/55x2.5MM, WHITE CORES, BLACK NUMBERS, XLPE, LSZH, 1KV, BLACK
6577ZH2/57x2.5MM, WHITE CORES, BLACK NUMBERS, XLPE, LSZH, 1KV, BLACK
6570/12ZH2/512x2.5MM, WHITE CORES, BLACK NUMBERS, XLPE, LSZH, 1KV, BLACK
6570/19ZH2/519x2.5MM, WHITE CORES, BLACK NUMBERS, XLPE, LSZH, 1KV, BLACK
6570/27ZH2/527x2.5MM, WHITE CORES, BLACK NUMBERS, XLPE, LSZH, 1KV, BLACK
6570/37ZH2/537x2.5MM, WHITE CORES, BLACK NUMBERS, XLPE, LSZH, 1KV, BLACK
6572ZH42x4MM, BROWN, BLUE CORES, XLPE, LSZH, 1KV, BLACK
6573ZH43x4MM, BROWN, BLACK, GREY CORES, XLPE, LSZH, 1KV, BLACK
6574ZH44x4MM, BROWN, BLACK, GREY, BLUE CORES, XLPE, LSZH, 1KV, BLACK
6572ZH62x6MM, BROWN & BLUE CORES, XLPE, LSZH, 1KV, BLACK
6573ZH63x6MM, BROWN, BLACK, GREY CORES, XLPE, LSZH, 1KV, BLACK
6574ZH64x6MM, BROWN, BLACK, GREY, BLUE CORES, XLPE, LSZH, 1KV, BLACK
6572ZH102x10MM, BROWN, BLUE CORES, XLPE, LSZH, 1KV, BLACK
6573ZH103x10MM, BROWN, BLACK, GREY CORES, XLPE, LSZH, 1KV, BLACK
6574ZH104x10MM, BROWN, BLACK, GREY, BLUE CORES, XLPE, LSZH, 1KV, BLACK
6572ZH162x16MM, BROWN, BLUE CORES, XLPE, LSZH, 1KV, BLACK
6573ZH163x16MM, BROWN, BLACK, GREY CORES, XLPE, LSZH, 1KV, BLACK
6574ZH164x16MM, BROWN, BLACK, GREY, BLUE CORES, XLPE, LSZH, 1KV, BLACK
6572ZH252x25MM, BROWN, BLUE CORES, XLPE, LSZH, 1KV, BLACK
6573ZH253x25MM, BROWN, BLACK, GREY CORES, XLPE, LSZH, 1KV, BLACK
6574ZH254x25MM, BROWN, BLACK, GREY, BLUE CORES, XLPE, LSZH, 1KV, BLACK
